The DRV8801PWPR is a highly versatile and reliable motor driver integrated circuit designed by Texas Instruments, widely used in various applications like robotics, automotive, and industrial automation. However, like any advanced electronic component, it can sometimes present issues. This article provides a comprehensive troubleshooting guide for engineers to diagnose and resolve common problems when working with the DRV8801PWPR.

DRV8801PWPR, motor driver troubleshooting, DRV8801 problems, motor control, DRV8801 solutions, circuit design, motor driver IC, DRV8801PWPR issues, Texas Instruments, motor driver IC troubleshooting, electronics repair.

Understanding the DRV8801PWPR and Common Troubleshooting Areas

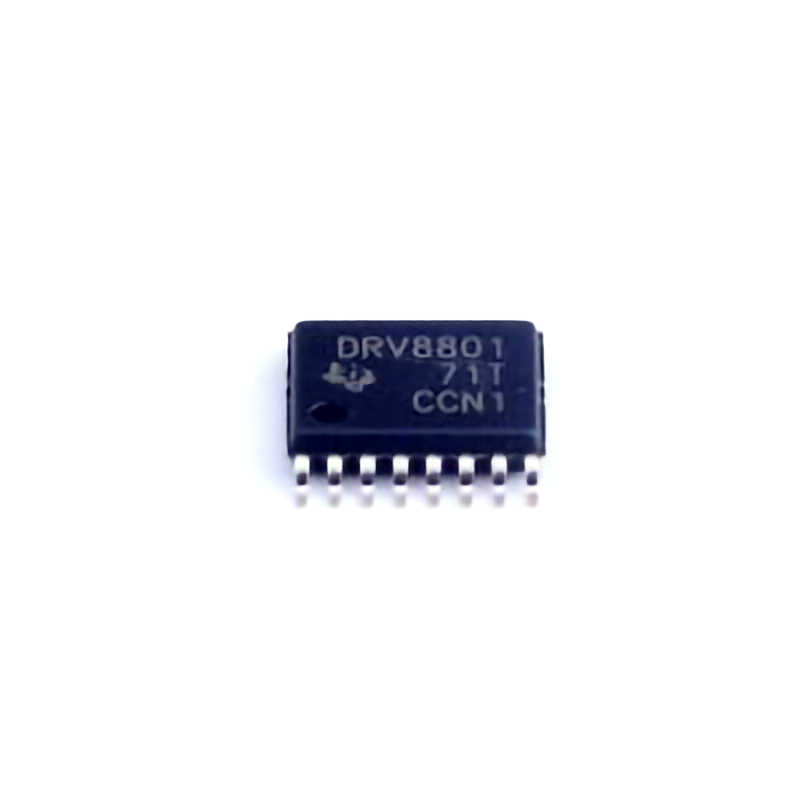

The DRV8801PWPR, developed by Texas Instruments, is a Power ful and efficient motor driver IC commonly used in stepper and DC motor applications. It delivers up to 1.5A continuous current per motor winding and integrates several protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout, making it ideal for sensitive applications in industrial and automotive systems.

However, as with any sophisticated electronic device, engineers might face challenges in using the DRV8801PWPR effectively. This article aims to help users troubleshoot the most common issues that arise when using the DRV8801PWPR motor driver.

1. Power Supply Issues

One of the most frequent causes of failure when using the DRV8801PWPR is related to power supply problems. Improper voltage levels, power spikes, or insufficient power can cause the motor driver to malfunction.

Troubleshooting Steps:

Check the Power Supply Voltage: Ensure that the input voltage to the motor driver IC is within the specified range, which is typically between 4.5V and 35V. Exceeding this range can lead to component damage or incorrect operation.

Verify Current Supply: Make sure that the power supply can deliver enough current to meet the motor's demands. A lack of adequate current can cause the driver to malfunction, resulting in low torque or failure to drive the motor.

Stabilize Power Sources: Use capacitor s on the power rails close to the IC to filter any noise or transients that may disrupt the motor driver’s operation. Ensure the ground plane is solid and uninterrupted to avoid voltage drops.

2. Overcurrent Protection Activation

The DRV8801PWPR comes with built-in overcurrent protection, which may engage when the current through the motor windings exceeds safe levels. If this protection is triggered, the motor driver may shut down or enter a fault state.

Troubleshooting Steps:

Inspect Motor Specifications: Ensure that the motor is within the current rating supported by the DRV8801PWPR. A motor that demands more current than the IC can provide will trigger overcurrent protection.

Check for Short Circuits: Inspect the motor wiring and connections for any potential shorts. A short circuit on the motor's windings can cause a current spike that will trigger the protection mechanism.

Evaluate Load Conditions: Ensure that the motor is not overloaded by mechanical resistance. High load conditions can cause the current to exceed the threshold, leading to protection being activated.

3. Thermal Shutdown

The DRV8801PWPR has thermal protection built into the IC to prevent overheating, which could permanently damage the chip. If the motor driver overheats, it may shut down to protect itself from thermal damage.

Troubleshooting Steps:

Ensure Adequate Cooling: Verify that the DRV8801PWPR has adequate heat sinking or passive cooling. Insufficient cooling, especially in high-power applications, can cause the IC to reach its thermal shutdown threshold.

Reduce Power Consumption: Consider adjusting the motor operating parameters, such as reducing the drive current or decreasing the motor speed to prevent the IC from overheating.

Improve PCB Layout: Ensure that the PCB design includes proper thermal management techniques. Heat-generating components should be placed away from temperature-sensitive parts, and thermal vias should be used to dissipate heat effectively.

4. Faulty Connections or Wiring Issues

Sometimes, the problem isn't with the DRV8801PWPR itself but rather with the connections and wiring between the motor, the driver, and the power supply.

Troubleshooting Steps:

Check Motor Connections: Ensure that the motor is properly connected to the DRV8801PWPR’s output terminals. Loose or faulty connections can cause erratic motor behavior.

Verify Control Signals: The DRV8801PWPR accepts various control inputs, including PWM and direction signals. Check that the control signals are correctly generated and within the voltage levels specified in the datasheet.

Inspect Grounding: Ensure that the ground connection between the motor driver and the power supply is solid and low-resistance. A poor ground connection can result in instability or erratic motor behavior.

5. PWM Control Signal Issues

One of the key features of the DRV8801PWPR is its ability to control the motor using PWM (Pulse Width Modulation). If the PWM signals are not correctly configured, the motor might run inefficiently, make excessive noise, or fail to operate at all.

Troubleshooting Steps:

Check PWM Frequency and Duty Cycle: Ensure that the frequency and duty cycle of the PWM signal are within the acceptable range for your specific application. Too high or too low of a PWM frequency can lead to poor motor control performance.

Verify PWM Signal Integrity: Use an oscilloscope to verify the integrity of the PWM signal. A noisy or unstable PWM signal can result in the motor not responding correctly.

Advanced Troubleshooting and Solutions for DRV8801PWPR

Now that we’ve covered basic troubleshooting areas, let’s dive into some more advanced issues that may arise when using the DRV8801PWPR and explore solutions to ensure optimal operation.

6. Undervoltage Lockout (UVLO) Problems

The DRV8801PWPR has a built-in undervoltage lockout feature that prevents the motor from running when the supply voltage is too low. If the undervoltage lockout is triggered, the motor will not operate.

Troubleshooting Steps:

Check Supply Voltage: Ensure that the voltage provided to the DRV8801PWPR is above the minimum operating voltage, which is typically 4.5V. If the voltage is too low, the undervoltage protection will engage, disabling the motor.

Monitor the Voltage at Power-Up: Measure the supply voltage at the moment the motor driver is powered on. A slow voltage ramp-up or an unstable power supply can trigger the UVLO.

7. Fault Detection and Diagnosis

The DRV8801PWPR provides fault flags that can indicate various issues such as overcurrent, thermal shutdown, or undervoltage conditions. These flags are crucial for diagnosing the cause of failure.

Troubleshooting Steps:

Use Fault Pins and Indicators: The DRV8801PWPR has dedicated pins to output fault information. Use these pins to determine the exact cause of the fault, whether it's thermal, overcurrent, or undervoltage.

Read the Fault Registers: If using a microcontroller, read the fault status from the IC’s fault registers to gain more insight into what triggered the shutdown or fault condition.

8. Driver IC Oscillation or Instability

In some cases, the motor driver may exhibit oscillations, instability, or noise, causing erratic motor behavior or a failure to start. This could be due to improper layout, signal interference, or component issues.

Troubleshooting Steps:

Improve PCB Layout: A poor PCB layout can introduce noise or oscillations in the motor control circuitry. Ensure that high-current paths are kept away from sensitive signal lines, and use decoupling capacitors to filter noise.

Reduce Switching Frequency: If oscillations are present, consider reducing the switching frequency of the PWM signal to avoid resonant frequencies that could excite unwanted oscillations in the system.

9. Compatibility with Different Motor Types

The DRV8801PWPR is designed to work with both DC motors and stepper motors, but the characteristics of these motors can influence the motor driver’s performance. Compatibility issues between the driver and the motor type can lead to underperformance or failure.

Troubleshooting Steps:

Check Motor Type Compatibility: Ensure that the motor being used is compatible with the DRV8801PWPR. For stepper motors, check whether the current setting and stepping mode are correctly configured.

Adjust Motor Parameters: For DC motors, check the supply voltage, current limits, and other operational parameters to ensure they align with the motor’s specifications.

10. Software or Firmware Issues

If the DRV8801PWPR is controlled via a microcontroller or other programmable devices, software or firmware issues may result in improper behavior.

Troubleshooting Steps:

Review Control Logic: Check the software logic that generates control signals for the motor. Ensure that the logic is correctly driving the PWM signal and direction control pins.

Test with Manual Control: To isolate potential firmware issues, test the motor driver with manual control signals (such as a signal generator) to confirm that the hardware is functioning as expected.

Conclusion

The DRV8801PWPR motor driver is a robust and reliable component, but like any complex electronic device, it can experience issues related to power, current, thermal conditions, wiring, and software. By following this detailed troubleshooting guide, engineers can diagnose and solve many of the common problems associated with this motor driver. Whether it’s power supply issues, overcurrent protection, PWM signal integrity, or thermal management, a systematic approach to troubleshooting can help ensure the smooth operation of the DRV8801PWPR and ultimately improve the performance of motor control systems.

By understanding the common failure modes and applying the suggested solutions, engineers can ensure that their projects continue to run smoothly, saving time and reducing the likelihood of costly errors.
