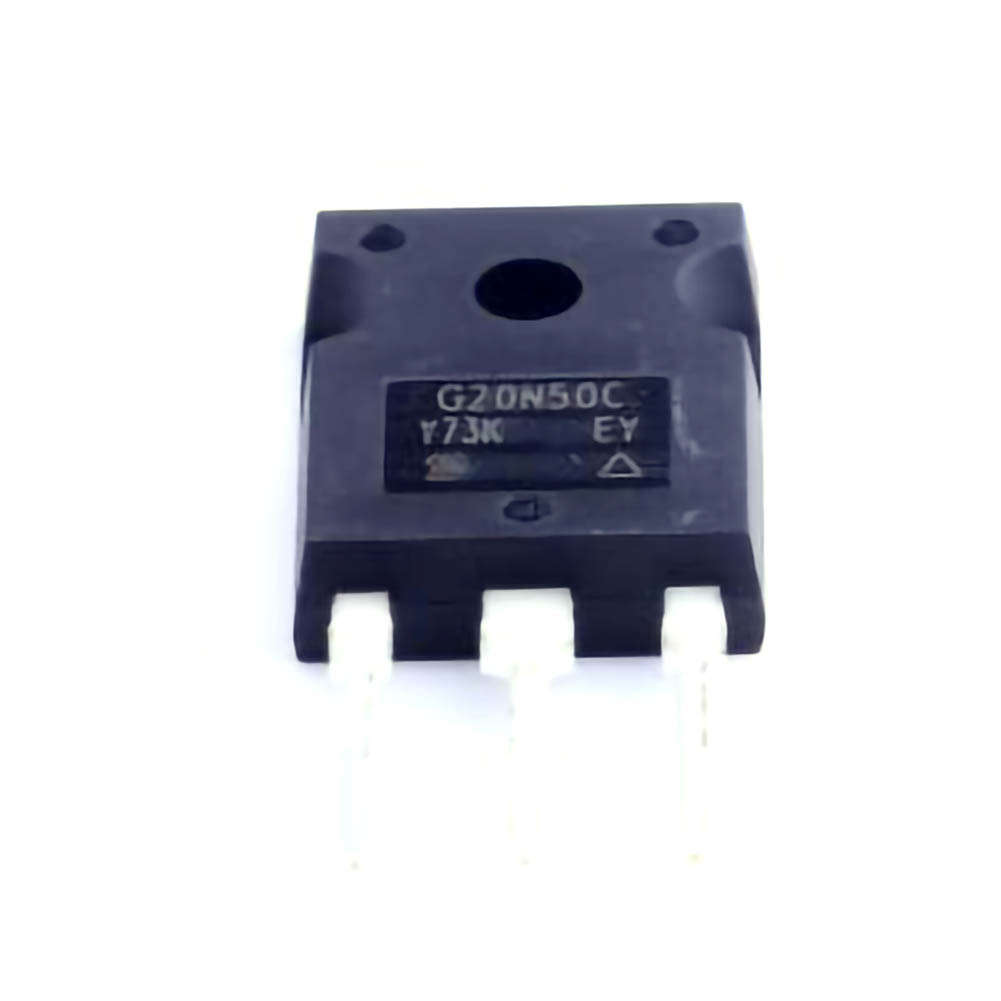

The VISHAY  SIHG20N50C-E3 is a high-performance IGBT used in industrial applications such as power inverters, motor drives, and welding equipment. However, like any electronic component, it can encounter issues during operation. This article delves into common troubleshooting methods and solutions for the SIHG20N50C-E3, providing guidance for engineers and technicians to ensure optimal performance and longevity of the component.

SIHG20N50C-E3, IGBT troubleshooting, industrial power devices, power inverters, motor drives, component failure, troubleshooting solutions, IGBT repair, industrial electronics, semiconductor troubleshooting

Common Issues with the SIHG20N50C-E3 and How to Identify Them

The SIHG20N50C-E3 is a widely used Insulated Gate Bipolar Transistor (IGBT) in the industrial sector, especially for high-power applications like motor drives, power inverters, and switching devices. Although IGBTs are reliable and efficient, they are not impervious to issues, especially in environments where thermal, electrical, and mechanical stresses are prevalent.

In this part of the article, we’ll explore the most common problems faced by users of the SIHG20N50C-E3 and how to effectively identify and diagnose them.

1. Overheating and Thermal Runaway

One of the most common issues that can occur with the SIHG20N50C-E3 is overheating. Since IGBTs are highly sensitive to temperature changes, excessive heat can cause the device to fail or operate inefficiently. This problem can lead to thermal runaway, where an increase in temperature causes higher current flow, which in turn generates even more heat, leading to a vicious cycle.

Symptoms:

High temperature readings from the IGBT.

Reduced performance of the equipment in which the IGBT is installed.

Physical signs of thermal damage such as discoloration or burn marks on the IGBT or surrounding components.

Causes:

Insufficient heat dissipation due to poor ventilation or inadequate heatsinks.

Incorrect operating conditions, such as too high of a switching frequency or current load.

Degraded thermal paste or poor contact between the IGBT and the heat sink.

Solution:

Ensure proper cooling and ventilation around the IGBT. Install larger or more efficient heatsinks if necessary.

Check the ambient temperature and ensure that the IGBT’s maximum operating temperature is not being exceeded.

Replace degraded thermal paste and ensure that the IGBT is firmly attached to the heat sink to ensure maximum thermal transfer.

Reduce switching frequency or operating current if these are causing excessive heat.

2. Gate Drive Issues

Another common issue with the SIHG20N50C-E3 is problems with the gate drive circuitry. Since IGBTs are voltage-controlled devices, the gate drive plays a crucial role in their operation. An improperly functioning gate drive can lead to erratic switching, reduced efficiency, or complete failure to switch.

Symptoms:

No switching action or erratic switching behavior.

High switching losses leading to overheating.

Damage to the IGBT due to prolonged periods of improper switching.

Causes:

Insufficient or unstable gate drive voltage.

Malfunctioning gate driver ICs or faulty connections.

Inadequate gate resistor values, leading to improper switching characteristics.

Solution:

Check the gate drive voltage against the IGBT’s specified requirements. For the SIHG20N50C-E3, a gate-emitter voltage of around 15V is typically required for proper operation.

Verify that the gate driver IC is functional and that all connections are intact.

Adjust gate resistors to optimize switching speed and reduce switching losses.

3. Short Circuit Protection Failure

The SIHG20N50C-E3 is designed with built-in short-circuit protection. However, under certain conditions, this protection can fail, potentially damaging the IGBT and the surrounding circuitry.

Symptoms:

Continuous short-circuit fault detection.

IGBT failure after experiencing a short-circuit condition.

Reduced reliability and lifespan of the IGBT.

Causes:

Inadequate short-circuit detection settings or incorrect thresholds in the protection circuitry.

A sudden surge in current due to a fault in the load or a sudden voltage spike.

Poor PCB design or layout, which can lead to unintended paths for the current.

Solution:

Ensure that the short-circuit protection circuitry is correctly configured and that the threshold settings align with the IGBT’s specifications.

Use external current-limiting resistors or circuit breakers to prevent excessive current from reaching the IGBT during a fault.

Check for any damage or faults in the load that could be causing excessive currents to flow through the IGBT.

4. Excessive Switching Losses

Switching losses in IGBTs can be significant, especially at high switching frequencies. Excessive switching losses can lead to increased thermal stress, reduced efficiency, and shorter lifespan of the component.

Symptoms:

High power dissipation during switching transitions.

Reduced system efficiency and increased heat generation.

Unstable operation or failure of the switching device.

Causes:

High switching frequency beyond the IGBT’s design capability.

Inadequate gate drive resulting in slow switching times.

Improper choice of switching elements or components, leading to excessive current flow during turn-on or turn-off events.

Solution:

Keep the switching frequency within the specified range for the SIHG20N50C-E3 to avoid excessive losses. For this IGBT, frequencies above 20 kHz can lead to inefficiency and increased thermal stress.

Ensure that the gate drive circuitry is optimized to allow for fast switching transitions.

Use proper snubber circuits or clamping devices to reduce voltage spikes and ringing during switching events.

Advanced Troubleshooting, Diagnostics, and Long-Term Solutions for the SIHG20N50C-E3

In this section, we will dive deeper into advanced troubleshooting techniques for the SIHG20N50C-E3, exploring the steps you can take to pinpoint issues accurately and the steps you should follow to ensure long-term reliability of the device.

5. Leakage Currents and Insulation Breakdown

Leakage currents are a critical issue that can lead to significant problems in IGBT performance. If the SIHG20N50C-E3 experiences excessive leakage current, it can indicate an insulation breakdown within the device, which can lead to permanent failure.

Symptoms:

Unexplained current flow even when the IGBT is supposed to be off.

Reduced voltage blocking capability, often resulting in early breakdown or arcing within the device.

Gradual degradation of system performance, especially under high-voltage conditions.

Causes:

High voltage transients that exceed the IGBT's rated voltage.

Excessive temperature, which can degrade the internal insulation materials.

Long-term exposure to high switching frequencies or high currents, leading to insulation wear.

Solution:

Measure the leakage current when the IGBT is in the off state. If the current is higher than the maximum rated leakage, the IGBT is likely damaged.

Check for voltage spikes or transient events that could be damaging the insulation and use appropriate snubbing techniques.

Reduce operational temperatures by improving heat management to prevent insulation breakdown.

Replace the IGBT if the leakage current is abnormally high, as this indicates irreversible damage to the device.

6. Incorrect VCE Saturation Voltage

The VCE saturation voltage (collector-emitter saturation voltage) is an important parameter in determining the efficiency of the IGBT. An increase in VCE saturation voltage often indicates that the IGBT is not fully turning on during operation, leading to increased power dissipation and reduced efficiency.

Symptoms:

Higher than expected VCE saturation voltage during normal operation.

Increased power losses, resulting in excessive heat generation.

Reduced efficiency and performance of the application in which the IGBT is used.

Causes:

Incorrect gate drive voltage or slow switching times.

Excessive collector current causing the IGBT to operate in a linear region instead of fully switching on.

Ageing or degradation of the IGBT leading to increased internal resistance.

Solution:

Verify that the gate-emitter voltage is within the specified range and ensure that it is stable during operation.

Check for any issues with the gate drive that could lead to slow or incomplete switching.

Measure the VCE saturation voltage under load conditions and compare it with the IGBT’s datasheet specifications. If it’s higher than the rated value, consider replacing the device.

7. Preventive Maintenance and Long-Term Care

Preventive maintenance is critical for ensuring the longevity and reliability of the SIHG20N50C-E3 and other IGBTs in your system. By following a regular maintenance routine and adhering to best practices, you can avoid many of the issues discussed earlier.

Recommended Maintenance Actions:

Regularly check thermal management systems (heatsinks, fans, and thermal paste) to ensure they are working optimally.

Inspect gate drive circuits and update firmware or hardware as necessary to optimize switching performance.

Perform regular inspections for physical damage to the IGBT and surrounding components.

Use surge protection devices and circuit breakers to protect the IGBT from power surges and faults.

Solution:

By regularly monitoring temperature, voltage levels, and current flow, engineers can ensure that the SIHG20N50C-E3 operates within safe parameters and avoids many of the common problems described in this article.

Conclusion

The SIHG20N50C-E3 is a powerful and efficient IGBT that plays a crucial role in many high-power applications. However, like any semiconductor component, it can experience issues such as overheating, gate drive failures, and insulation breakdowns. By understanding the common problems and troubleshooting methods outlined in this article, engineers and technicians can ensure that the SIHG20N50C-E3 operates efficiently, effectively, and reliably throughout its operational life. Regular preventive maintenance and adherence to best practices are key to minimizing downtime and maximizing the longevity of this essential component.
