Understanding the TLC2272 Operational Amplifier and its Circuit Design Features

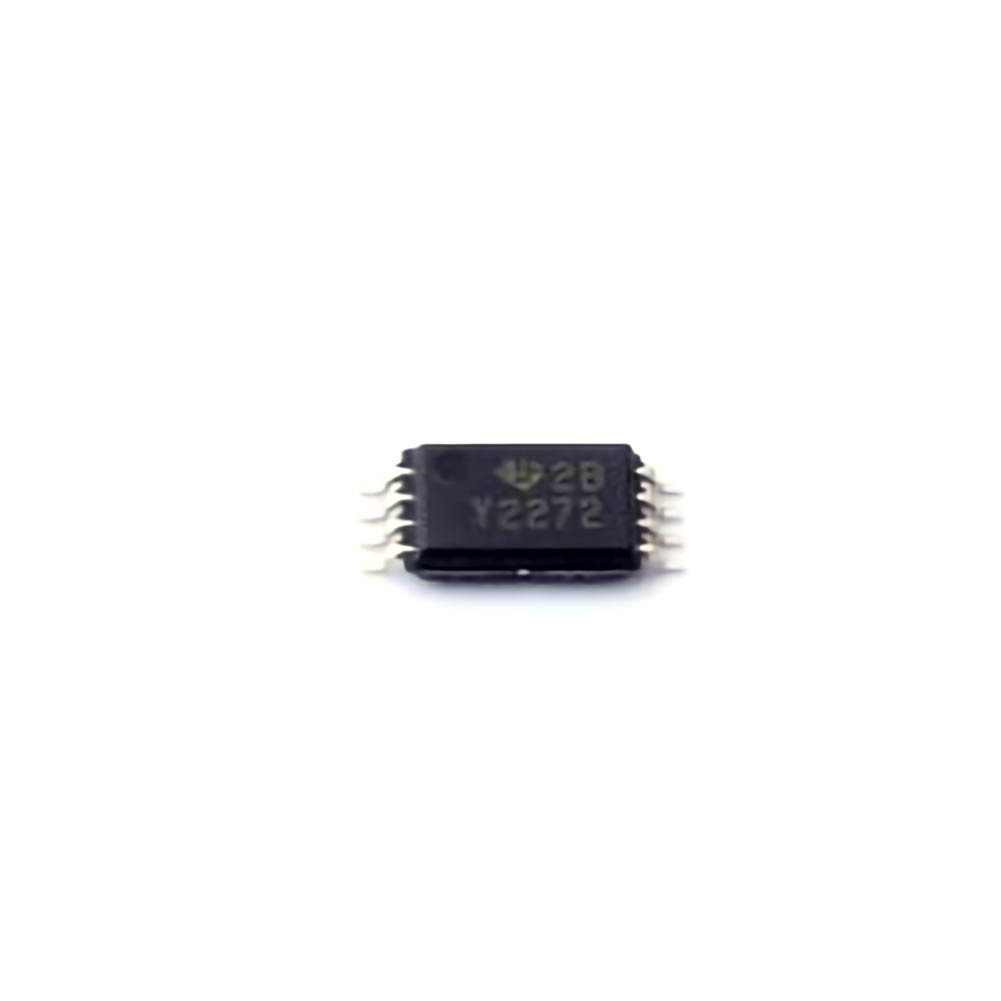

The TLC2272 is a low- Power , precision operational amplifier (op-amp) that is widely used in analog signal processing applications. With its low offset voltage, low bias current, and high input impedance, the TLC2272 provides excellent performance in many systems, ranging from simple amplification tasks to complex signal conditioning circuits. However, to fully harness its capabilities, it is essential to understand the nuances of its circuit design and how to optimize it for low-noise operation.

Key Features of the TLC2272 Operational Amplifier

Before diving into circuit design techniques, it's important to understand the key characteristics of the TLC2272:

Low Offset Voltage: The TLC2272 features an offset voltage of just 50 µV (maximum), making it ideal for precision measurement applications where even the smallest voltage discrepancies can lead to significant errors.

Low Input Bias Current: The input bias current is typically as low as 1 pA, reducing the need for compensation and enhancing the overall accuracy of the circuit.

Rail-to-Rail Output: This op-amp can drive output signals close to the supply rails, making it suitable for single-supply operation and simplifying circuit design in systems with limited voltage headroom.

Low Power Consumption: The TLC2272 operates on a wide supply range, from 1.8V to 5.5V, and consumes very little power, making it a great choice for battery-powered or portable applications.

These features make the TLC2272 well-suited for precision analog applications, but achieving optimal performance depends heavily on careful circuit design and noise minimization strategies.

Understanding Noise in Operational Amplifiers

Noise is a critical consideration in any analog circuit, and operational amplifiers are no exception. The main sources of noise in op-amps are:

Thermal Noise: Generated by the random motion of electrons in resistive components, thermal noise is present in all resistive elements of the circuit. It is typically more noticeable at higher frequencies.

Flicker Noise: Also known as 1/f noise, flicker noise is prominent at low frequencies and originates from s EMI conductor devices within the op-amp.

Shot Noise: This noise arises from the discrete nature of current flow in the active devices of the op-amp and is typically significant in high-speed circuits.

Power Supply Noise: Variations or fluctuations in the power supply can also contribute to noise in the op-amp’s performance.

The design of the surrounding circuitry must account for these noise sources and minimize their effects to ensure clean and accurate signal amplification.

Low-Noise Circuit Design for TLC2272

To achieve low-noise performance with the TLC2272, several key design practices should be considered:

1. Optimal Layout and Grounding

A well-designed PCB layout is essential for minimizing noise. Key strategies include:

Star Grounding: A star grounding scheme, where all ground connections converge at a single point, helps reduce the potential for ground loops, which can introduce noise.

Separate Analog and Digital Grounds: If your system includes both analog and digital circuitry, it is crucial to separate the grounds for each to prevent digital noise from coupling into the analog signals.

Minimizing Loop Area: Shorter traces and careful routing can reduce the loop area for high-frequency signals, thereby reducing susceptibility to electromagnetic interference (EMI).

Shielding: Proper shielding around sensitive analog components can help protect the signal from external electromagnetic interference, ensuring cleaner performance.

2. Use of Proper Decoupling Capacitors

Decoupling capacitor s play a pivotal role in noise reduction by filtering out high-frequency noise from the power supply. Place capacitors as close as possible to the power supply pins of the TLC2272 to ensure effective filtering. Typically, a combination of a large electrolytic capacitor (for low-frequency noise) and a smaller ceramic capacitor (for high-frequency noise) is used.

3. Choosing the Right Resistor Values

Resistor values play a significant role in noise generation. Larger resistors contribute more thermal noise, while smaller resistors may result in higher power consumption. For the TLC2272, it’s recommended to use resistors in the range of 1 kΩ to 100 kΩ, as they provide a balance between noise and power consumption. Additionally, using metal-film resistors, which have lower noise than carbon film resistors, can further reduce noise.

4. Low-Noise Power Supply

A clean power supply is crucial for low-noise op-amp operation. Use low-dropout regulators (LDOs) to ensure stable voltage levels, and consider adding additional filtering on the supply lines to reduce ripple and noise. If possible, use a separate power supply for the analog section to further isolate it from noise introduced by digital or high-power components.

5. Reducing Input Noise

When designing input stages, keep the input impedance high and the source impedance low. A low input impedance source increases the noise contribution, so it's essential to maintain a high impedance buffer, such as a FET input stage, between the source and the op-amp input. Additionally, use shielded cables for sensitive signal inputs to minimize noise pickup.

Application of TLC2272 in Low-Noise Systems

The TLC2272 is particularly well-suited for applications requiring low-noise operation. For example, in audio signal processing, medical instrumentation, or precision measurement systems, minimizing noise can significantly improve the accuracy and clarity of the output signal. By implementing the above design practices, the noise performance of the TLC2272 can be optimized, ensuring that the amplifier delivers the best possible results in real-world applications.

Advanced Noise Optimization Techniques and Practical Application Examples

In this second part, we will dive deeper into advanced noise optimization techniques and present practical examples of how the TLC2272 can be implemented in low-noise systems. This includes considering the op-amp’s behavior in specific applications such as audio amplifiers, active filters , and Sensor interface s.

Advanced Noise Optimization Techniques

While the basic design principles discussed earlier will provide a solid foundation for low-noise operation, there are several additional techniques that can further reduce noise in the circuit:

1. Feedback Network Design

The design of the feedback network around the TLC2272 can impact both the gain and the noise performance of the op-amp. To minimize noise, use low-noise, low-tolerance resistors and minimize the number of components in the feedback path. In high-precision circuits, the use of precision resistors (with a tolerance of 0.1% or better) is essential for maintaining the accuracy of the feedback network while minimizing thermal noise.

2. Optimizing Gain Configuration

The gain configuration of the TLC2272 should be chosen carefully to balance both the desired signal amplification and the noise performance. In general, higher gain amplifiers will amplify not only the signal but also the noise. Therefore, when high gain is required, it is important to minimize the input and feedback noise contributions. For example, consider using multiple stages of amplification with lower gain in each stage, rather than a single stage with very high gain, to reduce noise accumulation.

3. Utilizing a Low-Noise Amplifier Stage

In some cases, you might find it beneficial to use a low-noise amplifier (LNA) stage before the TLC2272 to amplify weak signals while keeping the noise at a minimum. This LNA stage can be designed using discrete low-noise transistor s or other precision op-amps optimized for low-noise operation.

4. Thermal Management

Excessive heat can increase the noise in semiconductor devices, including op-amps like the TLC2272. To mitigate this, ensure that the op-amp operates within its specified temperature range and that the circuit has adequate heat dissipation. In high-performance systems, using thermal vias, heat sinks, or thermally conductive PCB materials can help keep temperatures stable and prevent thermal noise.

Practical Application Examples

1. Audio Amplification

The TLC2272 is well-suited for audio applications, where low-noise operation is critical. In an audio amplifier design, the TLC2272 can be used as a preamplifier to boost the weak audio signal without introducing significant distortion or noise. By following the layout and grounding techniques mentioned earlier, and carefully selecting the feedback components, you can design an audio amplifier that delivers clear, high-fidelity sound.

Example: In a microphone preamp circuit, the TLC2272 can amplify the signal while maintaining the signal integrity. By using a low-noise resistor network in the feedback loop and careful power supply decoupling, you can achieve a high-quality, noise-free audio signal.

2. Active Filters

The TLC2272 can also be used in active filter circuits, such as low-pass, high-pass, or band-pass filters, where low noise is essential for maintaining signal purity. For example, in a low-pass filter designed to remove high-frequency noise from a signal, the TLC2272’s low noise characteristics make it an ideal choice to preserve the quality of the filtered signal.

Example: A 2nd-order low-pass filter for audio applications can be constructed using the TLC2272 as the active element. By carefully selecting the capacitor and resistor values and optimizing the layout for low noise, the filter can effectively attenuate unwanted high-frequency noise while preserving the desired audio signal.

3. Sensor Interfaces

The TLC2272’s low input bias current and low offset voltage make it an excellent choice for sensor interface circuits. Whether you are dealing with temperature sensors, pressure sensors, or other analog sensors, the TLC2272 can accurately amplify the small signals generated by the sensor while minimizing noise.

Example: In a temperature sensing application, where the output signal from a thermistor or thermocouple is small and requires amplification, the TLC2272 can provide precise and noise-free amplification, ensuring that the temperature readings are accurate and reliable.

Conclusion

The TLC2272 operational amplifier offers excellent performance in low-noise applications, thanks to its low offset voltage, low bias current, and other precision features. By carefully considering factors such as PCB layout, resistor selection, feedback network design, and power supply decoupling, designers can optimize the op-amp’s performance for noise-sensitive applications. Whether used in audio amplification, active filters, or sensor interfaces, the TLC2272 proves to be a versatile and reliable choice for achieving high-precision, low-noise operation in a variety of systems.

By following the guidelines and techniques outlined in this article, engineers can make the most of the TLC2272’s capabilities, ensuring that their designs meet the demands of modern low-noise applications.
