This article delves into common troubleshooting techniques and practical solutions for the CD40106BM96 , a popular Hex Inverter IC. With a focus on practical advice, this guide will help engineers and technicians diagnose and fix problems effectively, ensuring smooth operation of your CD40106BM96 circuits.

Common Issues and Initial Troubleshooting for CD40106BM96

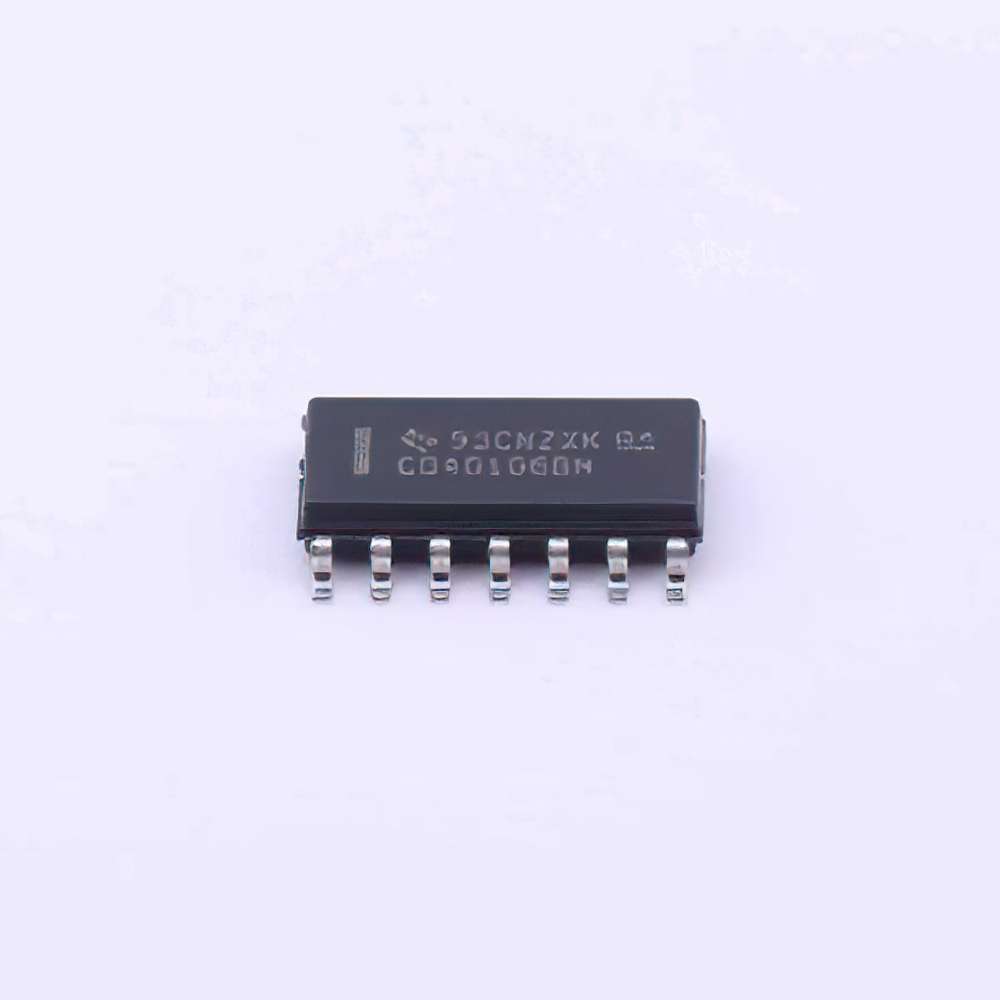

The Texas Instruments CD40106BM96 is a widely used Hex Inverter IC, perfect for logic-level operations in various electronics projects. However, like any electronic component, it may experience issues from time to time. Understanding how to troubleshoot the CD40106BM96 and apply the right solutions can save valuable time and effort. This part of the article will introduce common problems and initial troubleshooting steps.

1. Power Supply Issues

A frequent issue with the CD40106BM96 is inadequate or unstable power supply. Since the IC operates within a range of 3V to 18V, ensuring proper voltage levels is critical for its functionality.

Symptoms:

Inconsistent output from the inverter gates.

No response or erratic behavior from the IC.

High power consumption or the chip getting hot.

Troubleshooting Tips:

Check the power supply voltage with a multimeter. Ensure that the voltage stays within the acceptable range for the CD40106BM96.

Verify the current capabilities of the power supply. If the power supply can’t provide enough current, the IC might not function properly.

Ensure there are no loose connections or bad solder joints in the power distribution lines.

2. Grounding Issues

Proper grounding is essential for any IC to work effectively. If the ground connections are not stable or are improperly wired, the entire circuit could malfunction.

Symptoms:

Unstable or fluctuating output.

Inconsistent logic levels, leading to incorrect operation.

Signal noise or interference.

Troubleshooting Tips:

Verify that the ground pin of the CD40106BM96 is properly connected to the system ground.

Use a separate ground trace or plane to minimize noise and interference.

Check for any shorts between the ground and other pins of the IC.

3. Input Signal Problems

The CD40106BM96 requires clean, stable input signals to function correctly. If the input signal is noisy or improperly designed, the IC may produce incorrect or unpredictable outputs.

Symptoms:

Incorrect or erratic output values.

Logic gates that don’t behave as expected.

Troubleshooting Tips:

Use an oscilloscope to monitor the input signal. Look for clean, square waveforms with proper voltage levels.

Ensure that input signals meet the logic level requirements for the CD40106BM96, typically within the range of 0V to Vcc (where Vcc is the supply voltage).

If noise is detected on the input signal, use a filter (e.g., low-pass filter) to clean up the signal.

4. Soldering and Component Integrity

Poor soldering or damaged components are common sources of problems when dealing with any IC, including the CD40106BM96. Cold solder joints, cracked components, and poor connections can lead to malfunction.

Symptoms:

No output or completely erratic behavior.

Specific gates that don’t function while others work fine.

Troubleshooting Tips:

Visually inspect the solder joints, ensuring they are clean and free of bridges or cracks.

Use a magnifying glass or microscope to check for fine issues like cracked or damaged pins on the IC.

Resolder any suspicious connections to ensure they’re solid.

Test each gate of the IC independently, ensuring each one behaves as expected.

5. Oscillation and Noise Issues

Sometimes, the CD40106BM96 can enter an oscillatory state, where it produces high-frequency noise or spurious signals that affect the overall circuit operation. This can happen due to improper decoupling or insufficient filtering.

Symptoms:

Noise on the power supply line.

Unexpected outputs in digital logic circuits.

The IC oscillates even when inputs are stable.

Troubleshooting Tips:

Ensure adequate decoupling capacitor s are used close to the IC pins. Typically, 0.1µF to 10µF capacitors work well for filtering high-frequency noise.

Use a ground plane for improved grounding and reduced noise.

Place additional bypass capacitors (e.g., 100nF) at the power pins of the IC for better noise suppression.

Advanced Troubleshooting Techniques and Solutions for CD40106BM96

In this section, we’ll explore more advanced troubleshooting techniques for resolving complex issues that may arise with the CD40106BM96. These techniques involve in-depth circuit analysis, simulation, and additional tools to ensure the IC is functioning optimally.

1. Interfacing with Other Logic Devices

Many users connect the CD40106BM96 to other logic devices or ICs, creating potential for compatibility issues. When integrating this Hex Inverter IC with other components, mismatches in voltage levels or timing could cause problems.

Symptoms:

Logic conflicts between different parts of the circuit.

Unstable outputs when interfacing with other ICs.

Slow response time in high-speed circuits.

Troubleshooting Tips:

Ensure voltage levels between the CD40106BM96 and other ICs are compatible. Use level-shifting circuitry if necessary.

When interfacing with CMOS devices, check that the logic family is properly matched (e.g., CMOS to CMOS).

For high-speed applications, ensure that signal propagation delays are accounted for in your circuit design. Minimize trace lengths and use proper impedance matching to prevent signal integrity issues.

2. Overheating and Thermal Runaway

Overheating of the IC is a common sign of overvoltage or excessive current draw. Thermal runaway could lead to permanent damage if left unchecked.

Symptoms:

The IC becomes hot to the touch.

Unstable operation when the chip is heated up.

Reduced functionality after prolonged use.

Troubleshooting Tips:

Ensure the operating voltage does not exceed the recommended limits. Overvoltage can cause excessive current draw and overheating.

Use heat sinks or thermal pads if the IC is placed in a high-power environment where heat dissipation is a concern.

Test the IC at room temperature and under normal operating conditions to determine if it heats up excessively.

3. Signal Integrity and Noise Suppression

In more complex designs, signal integrity becomes an issue due to long traces, high-frequency switching, and cross-talk between neighboring traces. This is particularly relevant when the CD40106BM96 is used in high-speed circuits.

Symptoms:

Glitching or spurious outputs.

Delayed response times.

Logic errors in critical paths of the circuit.

Troubleshooting Tips:

Shorten signal traces as much as possible to reduce noise and signal degradation.

Route critical signal paths away from high-current traces and power supply lines.

Use differential signaling or transmission line techniques if high-speed performance is essential.

4. Simulation for Diagnosis

When manual troubleshooting fails to identify the root cause of the issue, circuit simulation tools such as SPICE can provide a deeper insight. Simulating the behavior of the CD40106BM96 within your circuit can reveal subtle issues that aren’t immediately visible on physical inspection.

Symptoms:

The issue is not reproducible or hard to pinpoint with basic measurements.

Circuit behavior differs in simulation versus real-life testing.

Troubleshooting Tips:

Use circuit simulation software to replicate the circuit and test different conditions (e.g., temperature variations, load conditions, etc.).

Analyze the transient response and ensure there is no unexpected oscillation or delay caused by the IC.

Compare your real-world results with the simulated model to see where discrepancies may exist.

5. Replacing the CD40106BM96 IC

If after extensive troubleshooting, the IC continues to malfunction, it might be necessary to replace the CD40106BM96. It is important to source a replacement from a reputable supplier to avoid counterfeit or low-quality products that could introduce more problems.

Symptoms:

The IC continues to fail even after trying all troubleshooting methods.

Replacement of other components in the circuit does not resolve the issue.

Troubleshooting Tips:

Replace the CD40106BM96 with a new unit and retest the circuit.

Verify the part number and specifications on the replacement IC to ensure compatibility with your circuit design.

If the replacement unit works as expected, the original IC was likely faulty due to manufacturing defects or external damage.

Conclusion

The CD40106BM96 is a reliable and versatile IC in many digital circuits, but like any electronic component, it is prone to issues that can impact performance. By understanding the common problems that can arise and applying the appropriate troubleshooting techniques, you can quickly diagnose and resolve issues with the CD40106BM96. Proper power supply management, clean signal inputs, effective grounding, and thoughtful circuit design are the key to ensuring reliable operation. For advanced issues, simulation tools, thorough component testing, and proper IC replacement can help restore functionality and improve circuit reliability.

With these troubleshooting strategies in hand, you’ll be better equipped to handle any problems that arise with the CD40106BM96 in your electronics projects, making your designs more robust and less prone to failure.
