In the world of modern electronics, Power efficiency and reliability are critical. The TPS54240DGQR , a high-efficiency buck converter, stands out as a versatile solution for power management, delivering optimal performance in a range of applications. This article dives deep into the features, applications, and advantages of using the TPS54240DGQR for high-efficiency power design, specifically focusing on its role in buck converter circuits.

TPS54240DGQR, buck converters, high-efficiency power design, power management, power electronics, voltage regulation, DC-DC conversion, energy efficiency, power supply solutions, power ICs.

Introduction to the TPS54240DGQR and Its Role in High-Efficiency Power Design

Power management is the backbone of almost every modern electronic device, from smartphones and laptops to industrial machinery and automotive systems. As technological demands evolve, the need for compact, efficient, and reliable power conversion solutions grows. Among these solutions, the TPS54240DGQR from Texas Instruments has emerged as a standout performer in the realm of buck converters.

What is a Buck Converter?

A buck converter is a type of DC-DC converter used to step down a higher input voltage to a lower, stable output voltage, all while maintaining high energy efficiency. This makes them ideal for applications where the power supply needs to be regulated and control LED without significant power loss. With the continuous trend toward smaller, more energy-efficient devices, the demand for buck converters has skyrocketed, and the TPS54240DGQR is a perfect example of this shift.

Introduction to TPS54240DGQR

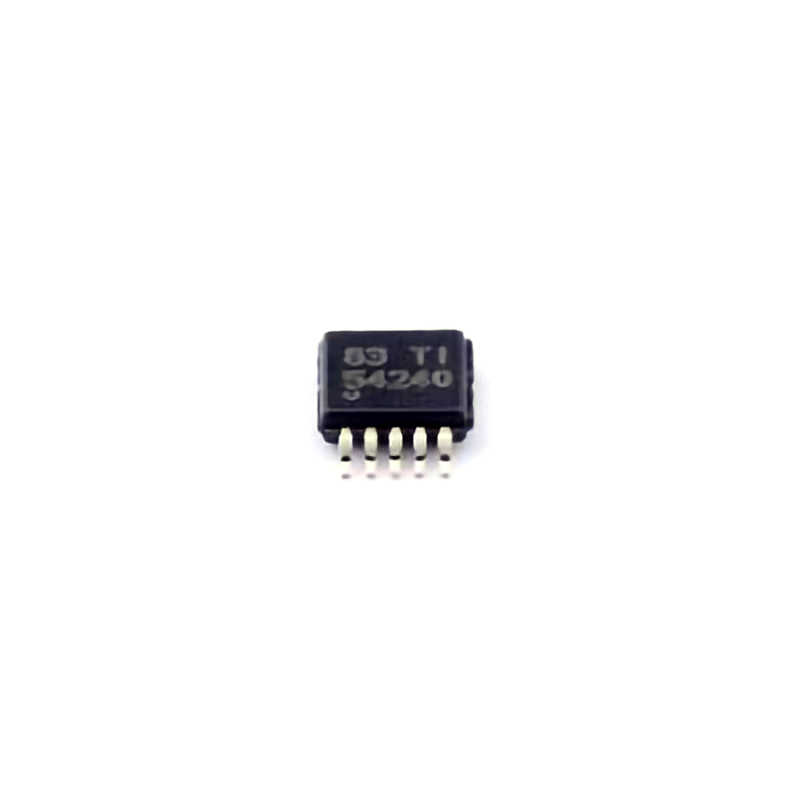

The TPS54240DGQR is a 42V, 4A buck converter from Texas Instruments designed to provide highly efficient and reliable voltage regulation for various applications. It supports an input voltage range of 4.5V to 42V, making it suitable for a wide array of devices. Its compact design, robust performance, and low standby current make it ideal for a host of power-sensitive applications.

One of the key features of the TPS54240DGQR is its high efficiency, which reaches up to 95% under optimal conditions. This means it effectively minimizes wasted energy in the form of heat, which is a significant advantage in applications where thermal management is a challenge. The integrated features, such as low quiescent current, adjustable output voltage, and seamless integration with external components, make the TPS54240DGQR a versatile and easy-to-use solution for a wide range of power management needs.

Advantages of Using the TPS54240DGQR

1. High Efficiency

One of the standout features of the TPS54240DGQR is its ability to deliver high efficiency—up to 95%. High efficiency is crucial in any power design as it translates into less wasted energy, which, in turn, reduces heat dissipation. This is particularly important in applications such as battery-powered devices, where conserving energy can extend battery life. The ability to run cooler also translates into increased reliability and durability of the entire system.

2. Wide Input Voltage Range

With an input voltage range of 4.5V to 42V, the TPS54240DGQR can handle a broad spectrum of input voltages, making it adaptable to various power sources. This flexibility allows it to be used in applications ranging from industrial equipment to automotive systems, where input voltage can fluctuate significantly.

3. Compact Design

In modern electronics, space is often at a premium. The TPS54240DGQR is designed to be compact, which helps reduce the overall size of the power supply module . Its small form factor makes it an ideal choice for portable devices, where minimizing the footprint is critical for design considerations.

4. Robust Performance

The TPS54240DGQR is designed to operate over a wide temperature range and offers built-in protection features, including thermal shutdown, current limit, and output short-circuit protection. This ensures that the device operates reliably, even in demanding environments, enhancing the overall longevity and performance of the system.

5. Easy Integration

The TPS54240DGQR’s simple design allows for easy integration into existing systems. With minimal external components needed for operation, designers can quickly deploy this buck converter in their designs, reducing time-to-market for new products.

Application Examples of TPS54240DGQR in High-Efficiency Power Design

The versatility and high performance of the TPS54240DGQR make it a preferred choice for a variety of high-efficiency power design applications. Below are several application scenarios where this buck converter has proven to be particularly effective.

1. Automotive Power Systems

Automotive systems require power supplies that are both efficient and reliable to ensure that the many subsystems in modern vehicles—such as infotainment, lighting, and safety systems—remain operational under varying conditions. The TPS54240DGQR is an excellent solution for these applications because it can handle the wide voltage fluctuations typically seen in automotive power systems, which can range from 12V to 42V.

For example, an automotive LED lighting system that requires stable 12V output from a 24V power source could benefit from the TPS54240DGQR. Its high efficiency ensures that the system runs cooler and uses less power, extending the life of the LEDs and reducing the vehicle’s overall energy consumption.

2. Industrial Equipment and Robotics

In industrial settings, power supplies must not only be efficient but also robust enough to withstand harsh environments. The TPS54240DGQR’s ability to operate over a wide temperature range and its protective features—such as thermal shutdown and current limiting—make it ideal for industrial power systems.

Consider a robotic arm used in a manufacturing plant. These robots often require precise power control to operate various actuators and sensors. By using the TPS54240DGQR, manufacturers can provide the required 24V or 12V stable power from a higher input source, ensuring that the robot operates at optimal efficiency, which, in turn, boosts productivity and reduces operational costs.

3. Battery-Powered Devices

Battery-powered devices—ranging from medical equipment to consumer electronics—demand power systems that maximize battery life while maintaining performance. One of the main challenges in these devices is managing power efficiency to reduce energy consumption.

The TPS54240DGQR offers a solution with its high efficiency, ensuring that battery-powered devices can run longer on a single charge. Whether used in a portable medical monitor or a wireless sensor, the TPS54240DGQR minimizes energy waste, leading to extended operation times and fewer battery replacements. Its low quiescent current also means that the converter does not drain the battery unnecessarily during standby, further contributing to power savings.

4. Telecom munications Equipment

Telecommunications infrastructure, including base stations and communication hubs, requires reliable, continuous power to ensure uninterrupted service. Power supply systems in these applications must be highly efficient to minimize energy costs and ensure the longevity of the equipment.

By using the TPS54240DGQR, telecommunications providers can implement highly efficient power solutions to step down higher voltages to the required levels. Whether powering remote base stations or communication modules in cellular networks, the TPS54240DGQR can help maintain the reliability and efficiency needed for these critical systems.

5. Consumer Electronics

From laptops and desktops to smart home devices, consumer electronics rely on efficient and reliable power conversion. The TPS54240DGQR is particularly well-suited for these applications due to its small size, high efficiency, and adaptability to a variety of input voltages. For instance, in laptops that require different voltage rails for various components (such as processors, graphics, and memory), the TPS54240DGQR can step down a higher input voltage to the precise levels needed, all while maintaining minimal energy loss.

6. Power Supplies for IoT Devices

The Internet of Things (IoT) is one of the fastest-growing sectors in electronics, and power efficiency is a top priority for IoT devices. Many IoT devices operate on limited battery power or require a compact power supply design to fit into tight spaces. The TPS54240DGQR’s high efficiency and small footprint make it an ideal choice for such applications.

In an IoT sensor node, for example, the TPS54240DGQR can efficiently convert an input voltage, such as 5V or 12V, into a lower, stable voltage suitable for the microcontroller and sensors. Its efficiency ensures that the device consumes as little power as possible, extending the operational life of battery-powered IoT systems.

Conclusion

The TPS54240DGQR from Texas Instruments is a powerful, versatile, and highly efficient solution for a variety of power management applications. From automotive and industrial systems to battery-powered devices and consumer electronics, the buck converter’s robust performance and high efficiency make it an ideal choice for designers seeking reliable, compact, and energy-efficient power solutions. With its wide input voltage range, ease of integration, and integrated protection features, the TPS54240DGQR is well-positioned to meet the demands of modern high-efficiency power design. Whether optimizing energy consumption, reducing heat dissipation, or ensuring system reliability, this advanced buck converter is a valuable tool in the power designer’s arsenal.
