Identifying and Diagnosing Common Issues with the LQH32CN220K23L

The Murata Electronics North America LQH32CN220K23L is a well-known electronic component, primarily used as an inductor for Power supplies, filters , and energy storage devices. Despite its reliability, issues can arise due to various factors such as improper handling, environmental conditions, or system malfunctions. Understanding these problems and how to diagnose them is critical for maintaining high system performance.

Understanding the LQH32CN220K23L Component

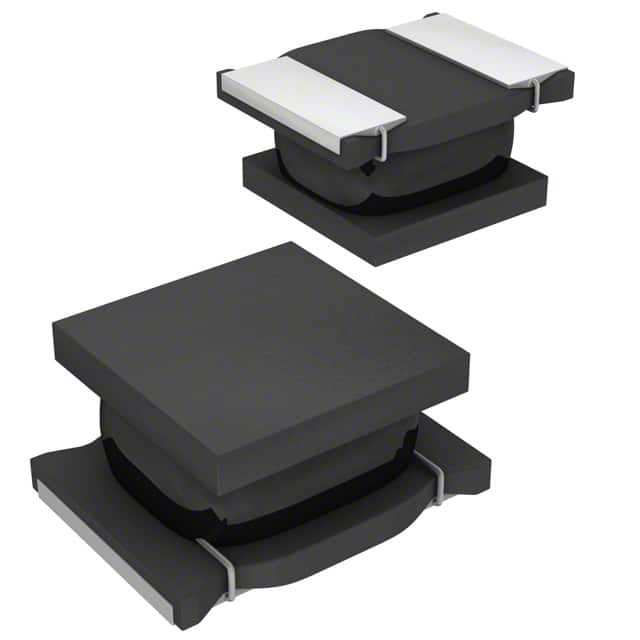

The LQH32CN220K23L is a surface-mount inductor with a nominal inductance of 22µH, making it ideal for applications like DC-DC converters, filtering, and noise suppression. Its compact size and high-quality construction allow it to function well in compact and high-performance circuits. However, like any electronic component, it is susceptible to failure when not used correctly.

Common Issues and Symptoms

Before diving into troubleshooting, it's important to recognize the potential issues that may affect the LQH32CN220K23L:

Overheating:

Overheating is a common issue that can occur when the inductor operates outside its rated power or when there is excessive current. Symptoms include:

Increased temperature

Reduced performance in the circuit

Visible damage to the component (burnt markings or discoloration)

Cause: Excessive power dissipation or inefficient cooling can lead to overheating. Operating the inductor at higher frequencies than specified can also cause it to heat up beyond safe limits.

Reduced Inductance:

A significant drop in inductance often signals internal damage to the component. This can manifest as:

Circuit malfunction or failure to filter noise

Insufficient voltage regulation or stability

Cause: Prolonged overloading, short circuits, or exposure to high temperatures can reduce the inductance value of the inductor, affecting overall circuit functionality.

Physical Damage:

Inductors are susceptible to physical damage during handling or installation. Look for:

Cracks or chips on the body of the inductor

Bends or stress marks on the leads (if applicable)

Cause: Mishandling during installation, impact, or stress due to improper PCB mounting can result in physical damage to the inductor.

Electrical Short Circuit:

If the inductor shows a low Resistance when measured with a multimeter, this can indicate a short circuit, which can be hazardous to the surrounding circuitry.

Cause: Excessive current or incorrect voltage ratings can cause internal windings to short out, leading to a loss of function.

Open Circuit:

An open circuit occurs when the inductor's internal windings are broken. It typically manifests as:

A complete failure in the application circuit

Circuit unable to function as expected

Cause: Mechanical stress, vibration, or a failure during manufacturing can result in an open circuit within the inductor.

Troubleshooting Process

Now that we have a clear picture of common issues, the next step is troubleshooting. Here is a step-by-step guide to diagnosing problems with the LQH32CN220K23L.

Visual Inspection:

The first and easiest step is to inspect the inductor visually. Look for any signs of physical damage, overheating, or discoloration. Pay special attention to any marks that might suggest a short circuit or burn damage.

Measure Resistance:

Using a multimeter, measure the resistance across the terminals of the inductor. A good inductor should show low resistance, typically in the range of a few ohms. A significant deviation from this value, especially if the resistance is close to zero, might indicate a short circuit.

Measure Inductance:

The inductance value is crucial to ensure that the inductor is functioning correctly. Use an LCR meter to measure the inductance value. If it is significantly different from the rated 22µH, the inductor may be damaged.

Check for Overheating:

If the inductor is part of a circuit that has been running hot, check its operating temperature. Use an infrared thermometer or thermal imaging camera to detect any hotspots around the component.

Check Circuit Behavior:

If the inductor is part of a larger circuit, observe the behavior of the circuit when powered on. If the circuit is malfunctioning or not filtering noise properly, it could indicate an issue with the inductor.

Prevention and Best Practices

Once you've diagnosed a potential problem, it's essential to address the root cause to prevent future issues:

Overcurrent Protection: Ensure the circuit incorporates overcurrent protection to avoid damaging the inductor.

Proper Heat Dissipation: Use appropriate cooling techniques such as heat sinks or increased airflow if the inductor operates in a high-power environment.

Correct Installation: Always handle the inductor with care, ensuring it is mounted correctly and free from mechanical stress.

Solutions and Fixes for LQH32CN220K23L Issues

After diagnosing the common issues outlined in Part 1, it’s time to explore solutions and fixes. This part of the article offers practical approaches to resolving problems with the LQH32CN220K23L, as well as maintenance tips to prolong its lifespan.

1. Fixing Overheating Issues

Overheating is one of the most common issues with inductors like the LQH32CN220K23L, and it can be a result of both environmental factors and circuit design flaws. Here's how you can address overheating:

Reduce Operating Frequency: Operating an inductor at a frequency higher than its specified range can lead to excessive heat. Ensure the circuit operates within the recommended frequency range for the inductor.

Optimize Circuit Design: If the inductor is part of a power supply or converter, consider redesigning the circuit to improve efficiency. This could include increasing switching efficiency, using more advanced components, or improving thermal management.

Use Heat Sinks or Thermal Pads: Adding heat sinks to your circuit or using thermal pads between the inductor and PCB can help dissipate excess heat.

Improve Airflow: In high-power applications, make sure that adequate airflow is provided around the inductor. Using fans or improving ventilation can help lower temperatures.

2. Restoring Inductance

If you find that the inductance value has dropped significantly, it is often impossible to fully restore the component’s original inductance once it's been damaged. In such cases, replacing the inductor with a new one of the same specifications is the best course of action. However, before replacing, consider:

Re-evaluating the Circuit: Ensure that the problem isn't due to an external factor such as excessive current or voltage, which might continue to damage a replacement inductor if left unaddressed.

3. Repairing Physical Damage

Physical damage to the LQH32CN220K23L typically means that the inductor cannot function as intended and will need to be replaced. However, you can mitigate future damage by:

Improved Handling and Installation: Always follow proper procedures for handling and installing inductors, especially surface-mount types. Use appropriate tools and ensure that mounting is done securely to prevent mechanical stress.

Vibration Isolation: If the inductor is used in environments with high vibrations, consider isolating it using vibration-damping materials or mounting it more securely.

4. Resolving Electrical Short Circuits

If an electrical short circuit is suspected, the first step is to disconnect the power and assess the inductor carefully. You can measure the resistance across the terminals to confirm the short circuit. Once confirmed:

Replace the Inductor: A short circuit typically means internal damage to the windings, and the inductor will need to be replaced.

Check the Power Supply: Investigate the power supply and associated components for issues that may have caused the overcurrent or voltage spikes leading to the short.

5. Addressing Open Circuits

An open circuit in the inductor, resulting from broken windings, is usually irreparable. Once an open circuit is detected, the inductor must be replaced. Before doing so, ensure:

Check for Design Issues: Confirm that the inductor was not subjected to excessive mechanical stress during installation or use. If such issues are detected, redesign the PCB or mount the component to prevent further damage.

Preventative Maintenance and Long-Term Solutions

While many of these solutions focus on fixing immediate issues, it is equally important to consider preventative measures to ensure the longevity and reliability of the LQH32CN220K23L:

Routine Inspections: Regularly inspect components and systems for any signs of wear, damage, or overheating. Early detection of issues can prevent larger failures.

Upgrading to Higher-Rated Inductors: In circuits where high power or temperatures are expected, consider using inductors with higher power ratings or thermal tolerance.

Optimize Component Placement: When designing or troubleshooting circuits, ensure that inductors are placed away from sources of excessive heat and physical stress.

By understanding the common issues, following a systematic troubleshooting process, and implementing effective solutions, you can maintain the performance of the LQH32CN220K23L and ensure that it functions reliably in your circuit designs for years to come.
