Understanding the TLV2372 IDR Op-Amp and Common Troubleshooting Issues

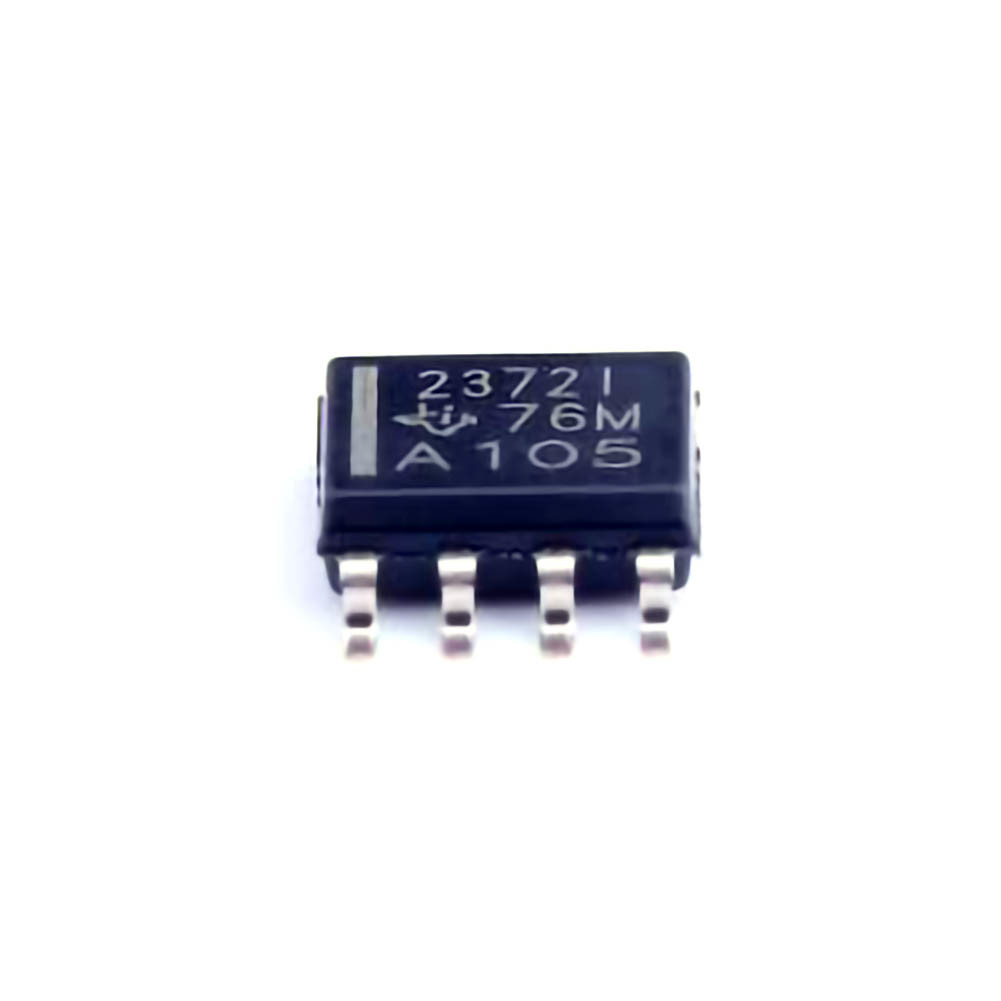

The TLV2372IDR is a versatile dual operational amplifier that is widely used in analog applications. Known for its low Power consumption and rail-to-rail input/output, it has become a go-to choice for designers in fields like consumer electronics, automotive systems, and industrial controls. However, as with any electronic component, issues can arise during its operation. Understanding common problems associated with the TLV2372IDR, and knowing how to resolve them, is key for maintaining system stability and ensuring reliable performance.

1. Power Supply Issues

One of the most common issues with operational amplifiers like the TLV2372IDR is power supply-related problems. This includes both under-voltage and over-voltage conditions. The TLV2372IDR is designed to operate on a wide range of supply voltages, typically from 1.8V to 5.5V, but if the supply voltage drops below or exceeds this range, it can lead to erratic behavior, including incorrect output voltages or even total failure to operate.

Solution:

Check Voltage Supply: First, verify that the power supply is within the specified range for the TLV2372IDR. Using a multimeter, ensure that the supply voltage is stable and within the recommended 1.8V to 5.5V range.

Decoupling capacitor s: Add decoupling Capacitors close to the power supply pins (typically 0.1µF and 10µF) to filter out noise and provide a more stable voltage.

2. Excessive Noise or Oscillation

Noise and oscillations in op-amp circuits can significantly affect the performance of the TLV2372IDR. Oscillations are particularly problematic in sensitive applications like audio amplifiers or sensor signal conditioning.

Solution:

Stabilizing Capacitors: Adding a small capacitor (e.g., 10-100 pF) between the output and inverting input may help to dampen high-frequency oscillations and stabilize the op-amp.

PCB Layout Considerations: Ensure proper PCB layout practices, such as keeping the feedback loop as short as possible and avoiding long traces that can act as antenna s.

Reduce Power Supply Noise: Minimize noise in the power supply by using additional filtering, such as ferrite beads , to isolate power lines from high-frequency interference.

3. Output Saturation

Output saturation occurs when the op-amp output swings to its supply voltage rails, either positive or negative, and remains there, often due to incorrect feedback or input conditions. In the case of the TLV2372IDR, the output can saturate when the input signal exceeds the input voltage range.

Solution:

Check Input Voltage Range: The TLV2372IDR has a rail-to-rail input range, but it still requires that the input signal stays within the proper voltage limits, typically within a few millivolts of the supply rails.

Ensure Proper Feedback Network: Review the feedback network and ensure that the resistor values are chosen to keep the op-amp within its linear operating region.

4. Incorrect or Inconsistent Gain

The TLV2372IDR is designed to provide precise amplification, but sometimes issues arise when the gain is not as expected. This can be caused by faulty components in the feedback loop, such as resistors or capacitors, or poor PCB design.

Solution:

Verify Feedback Components: Double-check the resistor and capacitor values in the feedback loop. Incorrect values or poor tolerance components can lead to inconsistent or incorrect gain.

Inspect for Short Circuits: A short circuit in the feedback loop or input pins can cause gain to be unstable. Inspect the PCB for potential solder bridges or damaged traces.

5. Temperature Sensitivity

Like many electronic components, the TLV2372IDR is sensitive to temperature changes. While it has a specified operating temperature range, extreme environmental conditions can still affect its performance, particularly in precision applications.

Solution:

Use Thermal Management : If operating in extreme conditions, consider adding a heatsink or employing thermal vias to improve heat dissipation from the op-amp.

Monitor Operating Temperature: Measure the temperature of the op-amp during operation, especially in high-power or high-load situations, and ensure it stays within the specified operating range.

Advanced Troubleshooting Tips and Solutions for the TLV2372IDR

6. Input Bias Current and Offset Voltage

The TLV2372IDR has a low input bias current, but when dealing with extremely sensitive circuits (e.g., high-impedance sensors or precision instrumentation), even small bias currents or offset voltages can cause issues. These problems can result in incorrect signal amplification or offset errors in the output.

Solution:

Implement Offset Compensation: If offset voltage is an issue, use external offset-nulling circuitry or a precision reference voltage to adjust the offset.

Use High-Impedance Sources Carefully: When working with high-impedance inputs, reduce the effect of input bias current by choosing suitable feedback and input resistor values that minimize the impact of bias currents.

7. Short- Circuit Protection

Another issue that may arise is short-circuiting at the output pin of the TLV2372IDR. While this op-amp has built-in short-circuit protection, repeated or prolonged short circuits can still cause thermal damage or reduce the lifespan of the component.

Solution:

Monitor Output for Shorts: Continuously monitor the output for signs of short circuits, such as excessive heat buildup or erratic behavior.

Use External Protection: In circuits that are prone to short circuits (e.g., load-driven applications), use external current-limiting resistors or fuses to protect the op-amp from excessive current draw.

8. Improper Grounding and Signal Integrity

One of the subtle issues that can cause problems in op-amp circuits is poor grounding or compromised signal integrity. If the ground path is noisy or there is ground loop interference, it can lead to unexpected behavior in the TLV2372IDR.

Solution:

Ensure a Solid Grounding System: Use a solid ground plane in your PCB design, ensuring that all ground connections are direct and short to minimize noise. Keep analog and digital grounds separated where possible.

Minimize Ground Loops: When connecting multiple ground points, avoid creating ground loops, which can induce noise into the system.

9. Overloading the Op-Amp

Overloading the TLV2372IDR can occur if the op-amp is required to drive a load that exceeds its current-driving capabilities. While the TLV2372IDR has rail-to-rail output capabilities, driving a heavy load directly can cause the op-amp to saturate or fail to deliver the desired output.

Solution:

Use a Buffer or Driver Stage: If you need to drive a low-impedance load, consider adding a buffer or driver stage between the op-amp and the load. A transistor or an additional op-amp with higher current output capabilities can prevent overloading.

Check Load Impedance: Ensure the load connected to the op-amp is within the recommended impedance range to avoid unnecessary strain on the output stage.

10. Understanding and Preventing Thermal Runaway

Thermal runaway can occur in op-amps if the temperature exceeds certain limits, causing an increase in power dissipation and further heating, eventually leading to failure. Although the TLV2372IDR is designed to handle typical operating temperatures, extreme conditions can still cause thermal issues.

Solution:

Implement Thermal Protection: Use temperature sensors or thermal shutdown circuits to monitor the temperature of the op-amp. If the temperature exceeds safe levels, the system can be shut down or reconfigured to prevent damage.

Ensure Proper Ventilation: For systems operating in high-power conditions, ensure proper airflow or use additional cooling mechanisms like heatsinks to prevent thermal runaway.

Conclusion

The TLV2372IDR operational amplifier is a reliable and versatile component, but like any electronic part, it is not immune to issues. Whether you're encountering problems with voltage supply, noise, output saturation, or more complex issues like input bias currents and thermal sensitivity, understanding the root causes and implementing the right solutions can make a significant difference. By following the troubleshooting tips and techniques outlined in this guide, you can enhance the performance and longevity of the TLV2372IDR in your electronic circuits. Remember, good design practices, along with vigilant testing and monitoring, are your best allies in keeping your circuits running smoothly.
