Understanding the MAX13487EESA+T and Common Issues

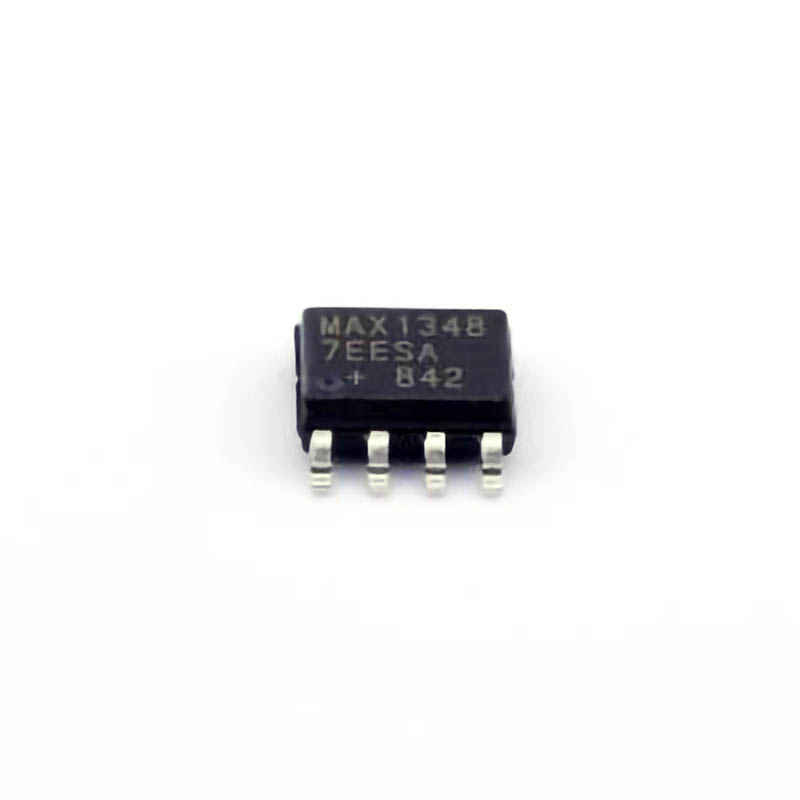

The MAX13487EESA+T is a high-performance RS-485/RS-422 transceiver from Maxim Integrated. As an essential component for enabling differential data Communication over long distances and in electrically noisy environments, the MAX13487EESA+T ensures reliable signal transmission with minimal Power consumption. However, like any electronic component, it may face a range of operational issues, particularly when dealing with complex industrial systems or mixed-signal environments.

In this article, we explore common troubleshooting challenges with the MAX13487EESA+T, along with effective solutions to maintain robust performance.

1. Understanding RS-485/RS-422 Communication Standards

Before diving into troubleshooting, it’s important to grasp the operational basics of RS-485 and RS-422 standards, as the MAX13487EESA+T operates under these protocols. Both standards are widely used in industrial automation, building control systems, and other applications requiring reliable data transmission over long distances (up to 4000 feet or 1200 meters).

RS-485: A multipoint communication standard, ideal for applications where multiple devices must communicate over the same bus. It supports half-duplex communication and uses differential signaling to minimize noise interference.

RS-422: A point-to-point communication standard used for long-distance, high-speed data transmission between two devices. Like RS-485, it also employs differential signaling but supports full-duplex communication.

The MAX13487EESA+T is designed to support both RS-485 and RS-422, making it a versatile transceiver for various communication needs. However, improper setup or design flaws can lead to significant communication problems, which we'll address in the following sections.

2. Common Troubleshooting Challenges

The most common issues faced when using the MAX13487EESA+T in RS-485/RS-422 networks typically fall into these categories:

Signal Integrity Issues

Power Supply Problems

Voltage Mismatches

Termination and Biasing Problems

Device Configuration Errors

Let’s explore each of these problems in more detail.

2.1 Signal Integrity Issues

Signal integrity is crucial for reliable data transmission, especially in noisy environments or long-distance setups. RS-485 communication is differential, meaning that data is transmitted as the difference between two voltage levels. However, various external factors—such as electromagnetic interference ( EMI ), crosstalk, or reflections—can degrade the signal.

Symptoms:

Data corruption or inconsistent transmission.

Communication failure between devices on the bus.

Causes:

Long transmission lines without proper termination or biasing.

High levels of electrical noise.

Poor PCB layout or routing of traces.

Solutions:

Termination Resistors : Ensure that proper termination resistors (typically 120Ω) are placed at both ends of the transmission line to prevent signal reflections.

Biasing Resistors: Use pull-up and pull-down resistors (usually 680Ω) on the A and B lines to maintain the proper idle voltage levels when the bus is not actively transmitting data.

Shielded Cables: Use twisted pair cables with shielding to minimize EMI.

PCB Layout: Keep traces as short as possible, and ensure that the differential pair is routed closely together to maintain signal integrity.

2.2 Power Supply Problems

The MAX13487EESA+T requires a stable power supply to operate correctly. Voltage fluctuations, noise, or poor grounding can cause malfunctioning or erratic communication behavior.

Symptoms:

The device may fail to power up.

Data transmission may be unstable or unreliable.

Causes:

Insufficient or fluctuating voltage levels.

Ground loops or poor grounding.

Power supply noise affecting the transceiver's performance.

Solutions:

Stable Voltage Supply: Ensure that the supply voltage meets the device's requirements (typically 3.0V to 5.5V for the MAX13487EESA+T). Use a low-noise, regulated power source.

Decoupling Capacitors : Place capacitor s (typically 0.1µF and 10µF) near the power pins to filter high-frequency noise and stabilize the power supply.

Grounding: Ensure a solid ground connection with minimal impedance, and avoid ground loops by keeping ground traces short and direct.

2.3 Voltage Mismatches

Voltage mismatches between devices on an RS-485/RS-422 bus can lead to communication failures, as the MAX13487EESA+T is designed to interface with specific voltage levels.

Symptoms:

Communication failure or sporadic data transmission.

The transceiver may not respond to the bus signals.

Causes:

Devices with incompatible voltage levels.

Incorrect logic voltage levels between transceiver and controller.

Solutions:

Check Voltage Levels: Ensure that the logic levels are compatible across all connected devices. For RS-485, the voltage difference between the A and B lines should typically be between 1.5V and 5V for proper signal recognition.

Level Shifters : If interfacing between different logic families (e.g., 3.3V and 5V systems), use appropriate level-shifting circuits to match voltage levels.

2.4 Termination and Biasing Problems

Incorrect termination and biasing can significantly degrade communication on an RS-485 network, leading to data errors or even complete failure to transmit.

Symptoms:

Data is intermittently lost or corrupted.

Bus contention errors occur when multiple devices attempt to drive the bus simultaneously.

Causes:

Missing or incorrect termination resistors.

Lack of biasing resistors to maintain proper idle voltage levels.

Solutions:

Proper Termination: Ensure that a 120Ω resistor is placed at both ends of the bus.

Biasing: Use pull-up and pull-down resistors to keep the bus idle voltage at a known level, typically 2V.

2.5 Device Configuration Errors

Sometimes the issue lies not in the physical layer but in incorrect configuration of the MAX13487EESA+T itself. These errors can arise from improper settings or misunderstanding the functionality of the device.

Symptoms:

The transceiver fails to transmit or receive.

Communication works sporadically or intermittently.

Causes:

Incorrect pin settings or logic levels.

The transceiver is not in the correct operating mode (e.g., driver vs. receiver mode).

Solutions:

Correct Mode Selection: Ensure that the DE (Driver Enable) and RE (Receiver Enable) pins are correctly set. The transceiver should be in driver mode (DE high, RE low) when transmitting and in receiver mode (DE low, RE high) when receiving data.

Check Pin Connections: Double-check all connections to the device’s control pins and make sure there are no shorts or floating pins.

Advanced Troubleshooting and Best Practices for Maximizing MAX13487EESA+T Performance

In the second part of this article, we dive deeper into more advanced troubleshooting techniques for the MAX13487EESA+T, focusing on complex scenarios that require a detailed understanding of the system design and environment. Additionally, we provide tips on preventive measures and best practices to ensure long-term reliability of your RS-485/RS-422 communication systems.

Stay tuned for the continuation in Part 2, where we will cover advanced troubleshooting scenarios, debugging techniques, and best practices that go beyond the basics to optimize your system’s performance.
