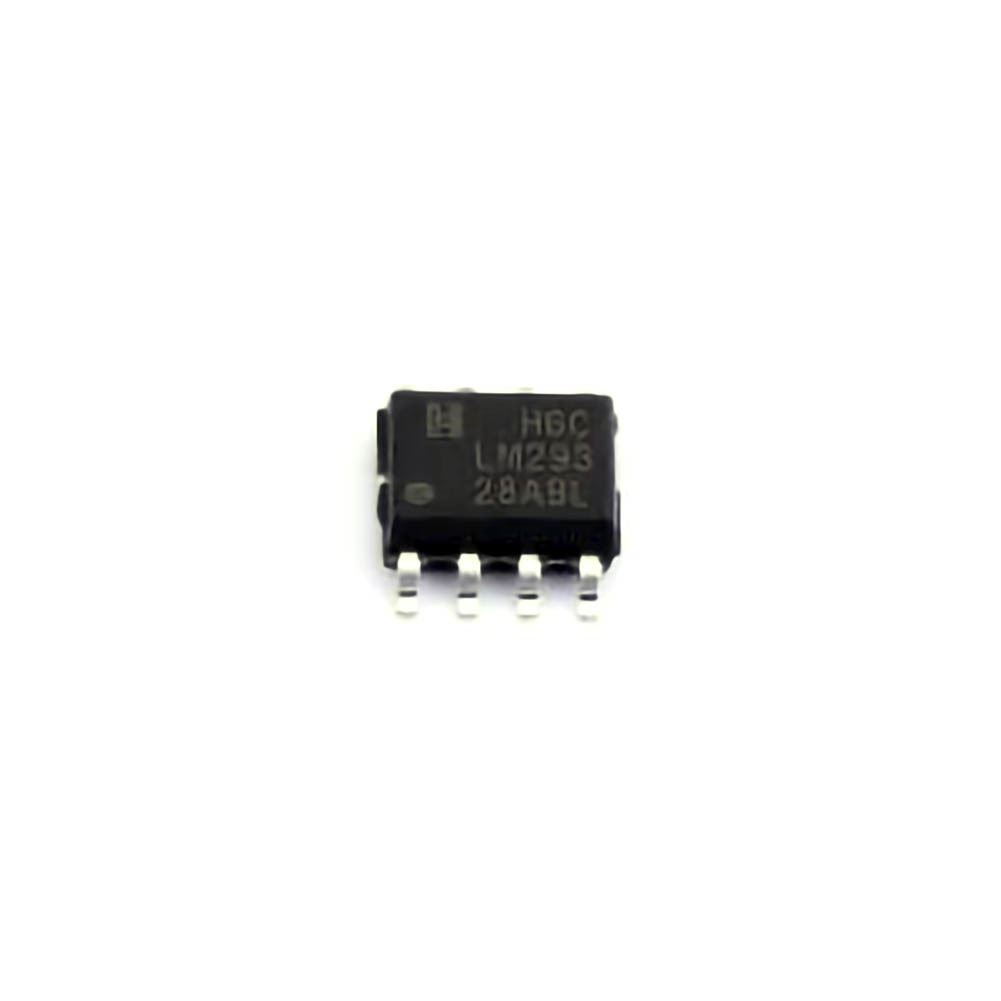

The LM293 DR is a popular low- Power , dual-operational amplifier used in various electronic applications. However, like any electronic component, it may encounter issues during use. In this article, we will explore common troubleshooting techniques and solutions to ensure the LM293DR functions optimally in your circuit.

Understanding the LM293DR and Common Issues

The LM293DR is a versatile operational amplifier (op-amp) commonly used in signal processing, audio amplifiers, active filters , and voltage followers. It features a low-power consumption design, high input impedance, and low offset voltage, making it a favorite for low-voltage applications. However, like all integrated circuits (ICs), it is prone to certain issues during installation, usage, or circuit design. In this section, we will explore some of the most common problems users encounter when using the LM293DR and discuss potential causes and fixes.

1. No Output Signal

One of the most common issues when using the LM293DR is the absence of an output signal. This problem can be caused by various factors. Here are some common causes and solutions:

Possible Causes:

Incorrect Power Supply: The LM293DR requires a proper voltage supply (typically between 3V to 32V) to function correctly. If the power supply is not within the recommended range, the op-amp may not output any signal.

Solution: Verify that the power supply voltage is within the operating range of the LM293DR. Double-check the connections to the positive and negative rails, and ensure they are stable.

Improper Grounding: If the op-amp is not properly grounded, the entire circuit can fail to function, leading to no output signal.

Solution: Ensure that the ground pin of the LM293DR is connected properly to the circuit's common ground.

Faulty or Misconfigured Input: An input signal that is too weak, outside the op-amp’s input voltage range, or improperly configured can prevent the LM293DR from producing an output.

Solution: Check the input signal’s voltage levels. Ensure that the input voltage is within the input voltage range (usually between the negative and positive supply rails).

Short Circuit or Open Connection: If the connections to the op-amp pins are either shorted or disconnected, the IC will fail to function properly.

Solution: Inspect the board for any short circuits or broken connections, especially on the inverting and non-inverting input pins, and the output pin.

2. Distorted Output

Another common issue with the LM293DR is distorted output signals, which can significantly degrade the performance of the circuit, especially in audio or precision applications.

Possible Causes:

Saturation: The output of the LM293DR may saturate if the input signal exceeds the voltage limits of the amplifier, causing clipping or distortion in the waveform.

Solution: Ensure that the input signal amplitude does not exceed the op-amp’s voltage rails. If necessary, use resistors or other components to limit the input voltage.

Overdriving the Op-Amp: Overdriving occurs when the input voltage is too high for the op-amp to handle, pushing the output into saturation.

Solution: Reduce the input voltage and ensure that the feedback network is designed to prevent overdriving. Using a potentiometer to adjust the input signal can help prevent this issue.

Feedback Loop Issues: Improperly configured feedback loops can lead to oscillations, noise, or distorted signals.

Solution: Verify that the feedback network (usually a resistor or a combination of resistors and Capacitors ) is correctly designed for the desired application. For example, ensure that the feedback resistor is correctly sized and that the compensation capacitor s are used appropriately.

3. High Noise and Instability

Noise and instability are issues that can arise when using the LM293DR in circuits where precision and low noise are crucial. Unwanted oscillations or background noise can interfere with the op-amp’s intended operation.

Possible Causes:

Power Supply Noise: If the power supply is noisy or unstable, the op-amp may amplify this noise, leading to unwanted fluctuations in the output.

Solution: Use a low-noise power supply and add decoupling capacitors near the power pins of the LM293DR to filter out high-frequency noise.

Improper Layout or Routing: Inadequate PCB layout, long wire traces, or poor grounding can introduce noise into the op-amp circuit.

Solution: Design the PCB layout carefully to minimize noise. Keep the op-amp’s power and ground traces short, and use proper grounding techniques, such as a solid ground plane.

Feedback Instability: Incorrect feedback network design or poor component selection can lead to oscillations, especially at high frequencies.

Solution: Add compensation capacitors or use snubber networks to stabilize the feedback loop and minimize oscillations. You may also consider using a different op-amp with a higher slew rate or better stability characteristics.

4. Excessive Power Consumption

Although the LM293DR is designed to be a low-power operational amplifier, excessive power consumption can still occur under certain conditions. This can be problematic for battery-powered or energy-efficient applications.

Possible Causes:

Incorrect Operating Voltage: Using an excessively high supply voltage can cause the op-amp to consume more power than necessary.

Solution: Ensure that the supply voltage is within the recommended range (3V to 32V). Operating the LM293DR at the lower end of this range can help reduce power consumption.

High Output Load: If the op-amp is driving a heavy load with low impedance, it may draw more current, leading to increased power consumption.

Solution: Ensure that the load connected to the op-amp is within the recommended impedance range. If necessary, use a buffer or a stage of amplification to reduce the load on the LM293DR.

Unnecessary Active Components: Additional components that draw power, such as resistors or other ICs in the circuit, can increase overall power consumption.

Solution: Review the circuit design to eliminate any unnecessary components that may be consuming power. Use low-power resistors or passive components where possible.

Advanced Troubleshooting and Long-Term Solutions

In the second part of our guide, we will dive deeper into advanced troubleshooting strategies for resolving issues with the LM293DR and implementing long-term solutions to enhance circuit reliability.

1. Temperature Sensitivity

Temperature variations can have a significant impact on the performance of the LM293DR, as with most analog components. Changes in temperature can cause shifts in offset voltage, drift in the input characteristics, and instability in the output.

Possible Causes:

Thermal Drift: The LM293DR’s offset voltage and input bias current can change with temperature, causing the circuit's output to drift.

Solution: Use precision resistors and implement temperature compensation techniques, such as thermistors or temperature-stable resistors, in the feedback and input network.

Overheating of the IC: Excessive heat can lead to malfunction or permanent damage to the IC.

Solution: Ensure proper heat dissipation by using heat sinks, improving PCB ventilation, or reducing the power supplied to the IC. Ensure the IC is not placed in a thermally constrained environment.

2. Improper Use of Rail-to-Rail Output

While the LM293DR is a low-power op-amp, it is not a rail-to-rail output device, which means it cannot drive the output voltage all the way to the supply rails. If your circuit expects this behavior, it could result in clipping or incorrect output levels.

Possible Causes:

Expecting Rail-to-Rail Output: Some applications may expect an op-amp to drive output voltage all the way to the supply rails, which is not possible with the LM293DR.

Solution: If rail-to-rail output is required, consider switching to an op-amp that supports this feature, such as the LM358 or similar models that offer rail-to-rail output.

3. Use of External Compensation

In some high-frequency or high-precision applications, additional external compensation may be necessary to ensure the LM293DR performs optimally. This is especially true in circuits where the op-amp is part of a high-gain configuration or a sensitive signal processing application.

Possible Causes:

Insufficient Internal Compensation: The LM293DR may not have sufficient internal compensation for some circuits, particularly those that require high bandwidth or low noise.

Solution: Consider adding external compensation components, such as capacitors or additional feedback resistors, to improve stability and performance. Check the datasheet for recommended compensation techniques for specific applications.

4. Circuit Design Best Practices for Longevity

To ensure the long-term reliability of your LM293DR-powered circuit, it’s essential to follow certain design principles that minimize risk factors.

Possible Solutions:

Use of Proper Bypass Capacitors: To ensure stability and minimize noise, always use bypass capacitors close to the power pins of the LM293DR. Typically, a 0.1 µF ceramic capacitor and a larger 10 µF electrolytic capacitor are recommended.

Protection from Electrostatic Discharge (ESD): Protect the op-amp from static electricity by using proper grounding techniques and ESD protection components (such as diodes) at the input and output.

Avoiding Overloading: Ensure that the load impedance and feedback loop are correctly matched to the op-amp’s specifications to avoid damage due to overcurrent or overstress.

Conclusion

Troubleshooting the LM293DR is an essential skill for anyone working with operational amplifiers in low-power circuits. By understanding the most common issues and applying practical solutions, you can significantly improve the reliability and performance of your circuits. Whether dealing with issues such as no output signal, noise interference, or temperature sensitivity, the troubleshooting steps outlined in this guide will help you address the root causes and keep your projects running smoothly.

By adhering to best practices for circuit design and long-term stability, you can ensure that your LM293DR-powered projects are not only functional but also reliable and durable for years to come.
