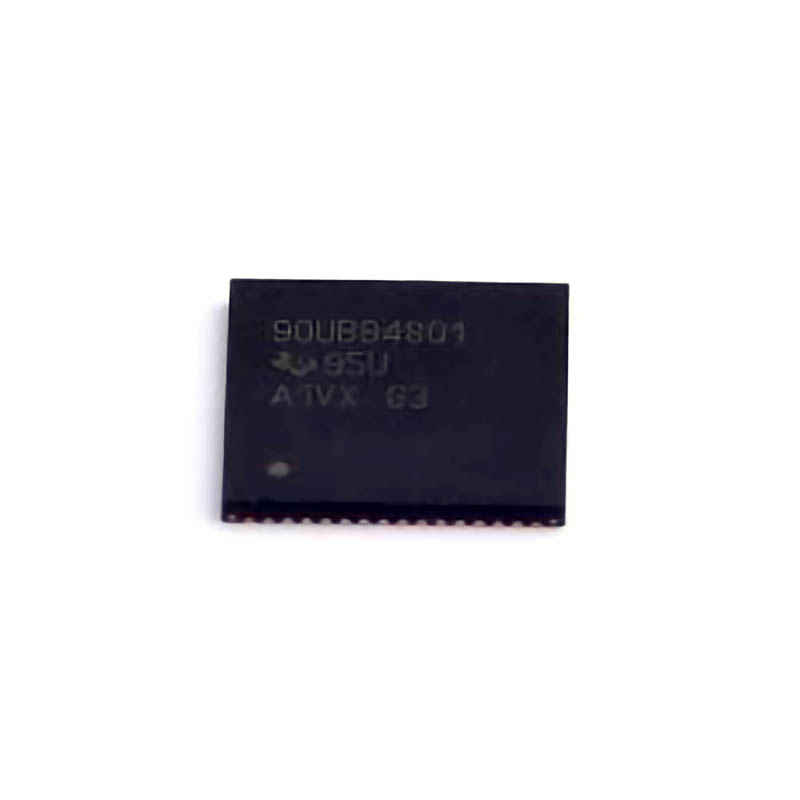

The DS90UB948TNKDRQ1 is an advanced FPD-Link III deserializer used in automotive and industrial applications, providing high-speed data transmission and robust signal integrity. However, like any sophisticated electronic component, it can face issues that require troubleshooting. In this article, we dive deep into common problems users may encounter with the DS90UB948TNKDRQ1 and how to solve them efficiently.

DS90UB948TNKDRQ1, Troubleshooting, Solutions, FPD-Link III, Deserializer, Automotive, Signal Integrity, High-Speed Data Transmission, Connectivity Issues, Error Diagnostics

Identifying Common Issues with DS90UB948TNKDRQ1

The DS90UB948TNKDRQ1 is an essential component in various high-performance applications, particularly in automotive systems, where it acts as a deserializer in the FPD-Link III architecture. Its primary function is to convert data from high-speed serial to parallel format for further processing. However, when it doesn't work as expected, it can be a significant roadblock.

Here, we will explore some of the common issues that users might face with the DS90UB948TNKDRQ1 and their potential solutions.

1. No Output from the DS90UB948TNKDRQ1

One of the most common issues is when the DS90UB948TNKDRQ1 fails to provide an output signal. This issue could be due to several factors, such as Power supply problems, improper configurations, or physical connection issues.

Troubleshooting Steps:

Power Supply Check: Ensure that the device is receiving the correct voltage, as per the datasheet specifications (typically 3.3V or 1.8V). A multimeter can help verify the voltage at the input pins. If the voltage is too low or fluctuating, replace the power supply or troubleshoot the power distribution network.

Check Data Input Signals: Verify that the input signals to the DS90UB948TNKDRQ1 are being sent correctly. Use an oscilloscope to check for any disruptions in the signal transmission. If there is a signal issue, you may need to inspect the source device.

Reset the Device: If the output is still not functioning, try performing a hard reset by cycling the power to the DS90UB948TNKDRQ1. In some cases, an unresponsive state can occur, and a reset will resolve the issue.

2. Data Corruption or Artifacts in the Output

Another common issue is when the output data becomes corrupted or contains artifacts like random noise or missing data. This is usually due to problems in signal transmission, Timing mismatches, or insufficient signal integrity.

Troubleshooting Steps:

Signal Integrity Analysis: Use an oscilloscope or signal analyzer to check the integrity of the high-speed serial signals. Ensure that there are no reflections, excessive jitter, or other anomalies in the signal waveform. Poor signal integrity is often caused by incorrect PCB layout, poor grounding, or mismatched impedance.

Check Clock Timing: The DS90UB948TNKDRQ1 operates in synchronization with the input clock signal. If there’s a mismatch between the serializer and deserializer clock rates, data corruption can occur. Verify that the clocks on both sides of the communication channel are synchronized, and ensure that the frequency and phase are within the acceptable range as per the device's datasheet.

3. FPD-Link III Link Failure

FPD-Link III is designed to support high-speed data transmission between devices, but sometimes, the link fails to establish or drops out intermittently. The failure of the link could be due to a variety of reasons, including wiring issues, defective components, or incorrect protocol configuration.

Troubleshooting Steps:

Inspect the Cable and Connector s: Start by checking the physical layer of the communication link. Ensure that the cables and connectors are correctly inserted and free from any visible damage. Poor cable quality or loose connections can cause intermittent failures or complete link loss.

Verify the Serializer Settings: If you're working with a serializer and deserializer pair, ensure that the serializer settings (e.g., data rate, protocol, and lane configuration) match those of the deserializer. A mismatch here will result in a failure to establish a proper link.

Signal Quality and Length: If the cable length exceeds the recommended limits, signal degradation could be the culprit. Reducing the cable length or using better shielded cables may help.

Advanced Troubleshooting and Solutions for DS90UB948TNKDRQ1

Once you’ve addressed the basic troubleshooting steps for common issues, you may encounter more advanced problems that require a deeper understanding of the DS90UB948TNKDRQ1 and its environment. In this section, we will explore more advanced troubleshooting steps and potential solutions to these issues.

4. Excessive Power Consumption or Heat Generation

Another issue that can arise with the DS90UB948TNKDRQ1 is when it consumes excessive power or generates a significant amount of heat, leading to instability or device failure.

Troubleshooting Steps:

Verify Operating Conditions: The first step is to ensure that the DS90UB948TNKDRQ1 is operating within its specified voltage and temperature ranges. Exceeding these limits can cause excessive power consumption. Check the device's operating conditions against the datasheet, and ensure the environment (e.g., temperature) is within limits.

Thermal Management : If the device is overheating, check if the PCB design has adequate thermal dissipation. You may need to add heat sinks, improve airflow around the device, or enhance PCB layout for better heat distribution.

Power Consumption Profiling: Use a power analyzer to profile the current consumption of the DS90UB948TNKDRQ1. This can help identify whether there is any unusual power draw due to malfunctioning components or suboptimal circuit design.

5. Incorrect or Missing Data Channel Mapping

When dealing with high-speed serial interface s like FPD-Link III, proper mapping of data channels is crucial. If the data is being transmitted across the wrong lanes, the deserializer will fail to correctly interpret it.

Troubleshooting Steps:

Check Lane Configuration: Double-check the lane configuration between the serializer and the deserializer. Ensure that the data lanes are correctly mapped and that each lane is properly connected. If using multiple lanes, verify that each lane is correctly aligned in both the serializer and deserializer.

Protocol Mismatch: Some data integrity issues could arise if the serializer and deserializer are not configured for the same protocol or the same number of lanes. Ensure that both devices are set to use compatible protocols and that the lane count is identical on both sides.

6. Error Diagnostics and Log Review

The DS90UB948TNKDRQ1 provides built-in diagnostic features that can help pinpoint the root cause of issues. By enabling error reporting and reviewing diagnostic logs, you can often identify issues related to signal integrity, link quality, or internal errors.

Troubleshooting Steps:

Enable Error Reporting: The DS90UB948TNKDRQ1 can output error status information via specific pins. Enable these pins and monitor them to see if they indicate specific errors like CRC mismatches, frame errors, or clock issues.

Log Analysis: If the device supports logging, retrieve the logs and review them for any error codes or unusual entries. This can give you insights into whether the issue lies with the data link or with the internal components of the deserializer.

7. Incompatibility with Other Components

In some cases, the DS90UB948TNKDRQ1 may not be fully compatible with other components in your system, leading to communication or performance issues.

Troubleshooting Steps:

Component Compatibility Check: Review the datasheet and system requirements to ensure that all other components (e.g., serializers, processors, or interfaces) are fully compatible with the DS90UB948TNKDRQ1. Incompatibility between different ICs can cause instability in the data transmission.

Test with Known Compatible Devices: If possible, swap out other components in your system with known compatible devices and test the DS90UB948TNKDRQ1 in a simplified setup. This can help you identify whether the issue lies with the deserializer or other parts of the system.

Conclusion

The DS90UB948TNKDRQ1 is a robust and reliable deserializer, but like any high-performance electronic component, it may encounter issues during operation. Whether you're dealing with no output, corrupted data, link failures, or more advanced problems like excessive power consumption or error diagnostics, the solutions provided in this guide can help you quickly identify and resolve common issues. By following these troubleshooting steps, you can ensure that your DS90UB948TNKDRQ1 continues to perform optimally, providing stable and high-speed data transmission in your automotive or industrial systems.
