Understanding the AD620 Instrument Amplifier and its Role in Low-Noise Signal Acquisition

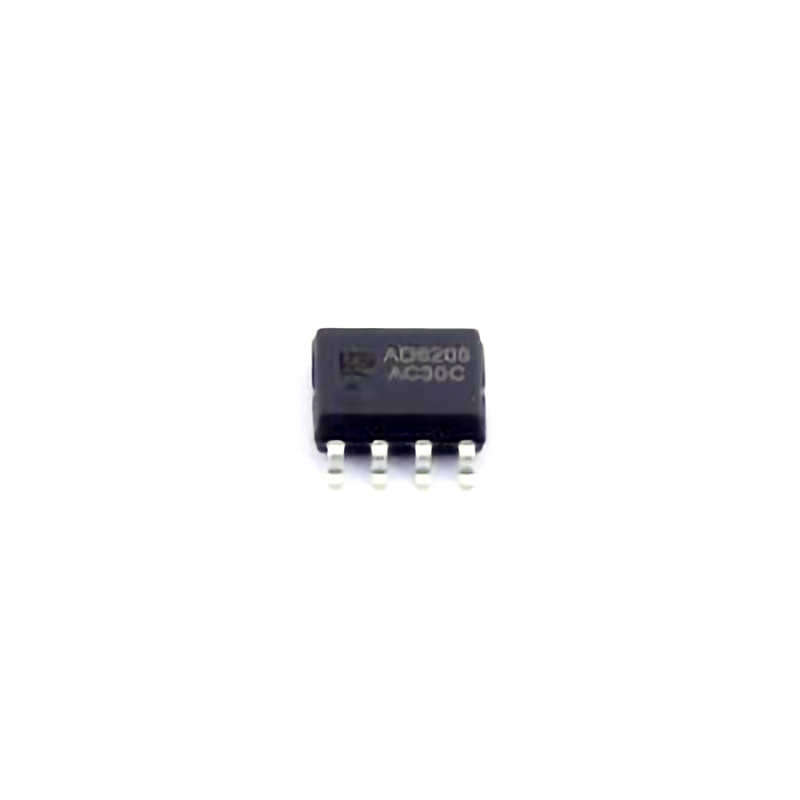

The AD620 is a highly versatile and precision instrument amplifier designed to handle low-level signals in a variety of applications. It is especially favored in environments that demand high-accuracy signal acquisition with minimal noise interference. The AD620 stands out due to its combination of high common-mode rejection ratio (CMRR), low offset voltage, and adjustable gain, making it an ideal choice for applications requiring sensitive, low-noise measurements.

Key Features of the AD620

Before diving into its applications, it's essential to understand the core features that make the AD620 an exceptional choice for signal amplification:

Low Power Consumption: The AD620 operates with low power (typically around 1.2mA), which is crucial for battery-powered devices like portable sensors or medical monitoring systems.

High Common-Mode Rejection Ratio (CMRR): One of the most notable characteristics of the AD620 is its excellent CMRR, typically 100 dB at a gain of 1. A high CMRR means the amplifier can reject common-mode noise, such as power-line interference, which can distort low-level signals.

Adjustable Gain: The AD620 offers a wide gain range from 1 to 1000, which can be set with a single external resistor. This flexibility allows the amplifier to be tailored to specific signal acquisition needs, from high-precision medical instruments to industrial sensor systems.

Low Offset Voltage and Drift: The AD620 has a very low input offset voltage, typically 50 µV, which ensures minimal distortion in the amplified signal. Furthermore, it has low offset drift over temperature variations, which makes it suitable for precise applications where environmental stability is a concern.

High Input Impedance: The amplifier provides high input impedance, which minimizes the load on the sensor or source of the signal, making it perfect for applications where signal integrity is paramount.

The Need for Low-Noise Signal Acquisition

Low-noise signal acquisition is essential in systems that monitor or record small, sensitive signals, such as those found in medical, scientific, and industrial applications. Noise, both from external sources (like electromagnetic interference) and internal sources (such as thermal noise in components), can corrupt the signal and affect the accuracy of measurements.

In medical diagnostics, for example, equipment such as ECGs, EEGs, and EMGs require the detection of minute electrical signals from the body. Any noise introduced into the signal can lead to misdiagnosis or unreliable results. Similarly, in industrial automation, sensors monitoring processes must deliver accurate data for control systems, and noise can lead to errors in operation.

The AD620 is specially designed to minimize these errors and optimize the quality of the acquired signal. By amplifying the desired signal while rejecting unwanted noise, the AD620 ensures that the signal remains clean and accurate throughout the processing chain.

Typical Applications of the AD620

Medical Instrumentation

The AD620 is widely used in medical instrumentation due to its precision and low-noise characteristics. For example, electrocardiogram (ECG) machines require the detection of small bioelectric signals from the heart. The AD620 amplifies these signals, ensuring they are strong enough for accurate analysis while maintaining a low noise floor, which is crucial for proper diagnosis.

Industrial Automation

In industrial settings, the AD620 is used to amplify signals from various sensors, such as strain gauges, thermocouples, and pressure transducers. By minimizing noise, it helps ensure that the system responds correctly to changes in the monitored environment, preventing costly errors in manufacturing or process control.

Environmental Monitoring

Environmental monitoring often involves the detection of subtle changes in parameters such as temperature, humidity, and gas concentrations. The AD620 is employed in these systems to enhance the sensor signals while rejecting background noise, providing accurate data that can inform decisions regarding environmental safety or compliance.

Scientific Research

In research fields, where high-precision measurements are essential, the AD620 is used in laboratory instruments that require the amplification of weak signals. Its low offset and drift make it a reliable choice for scientific instruments that demand stability over time.

Design Considerations for Using the AD620 in Low-Noise Applications

When integrating the AD620 into a signal acquisition system, engineers must consider various design parameters to optimize its performance in low-noise environments.

Power Supply Decoupling

Power supply noise can significantly impact the performance of the AD620, so proper decoupling of the power supply is critical. Engineers should use low-ESR (equivalent series resistance) capacitor s close to the power supply pins to reduce noise and improve stability.

PCB Layout Considerations

To minimize noise pickup and ground loops, careful PCB layout is necessary. High-frequency signals should be routed away from sensitive analog traces, and a solid ground plane should be used to reduce the risk of noise interference.

Minimizing External Interference

Shielding the amplifier circuit or using differential signaling can help reduce the effects of electromagnetic interference ( EMI ). Additionally, using twisted-pair cables for differential inputs can cancel out noise-induced common-mode signals, further improving the signal quality.

Temperature Stability

Since the AD620's offset voltage can drift with temperature, it's crucial to design the system to minimize temperature variations or compensate for drift. Engineers can use precision resistors with low temperature coefficients and implement temperature sensors to monitor and compensate for any temperature-related changes in performance.

Advanced Design Techniques and Practical Tips for Optimizing AD620 in Low-Noise Signal Acquisition Systems

Fine-Tuning the Gain for Optimal Performance

One of the primary advantages of the AD620 is its adjustable gain, which allows engineers to tailor the amplification to the specific needs of the application. However, choosing the right gain is essential for both signal integrity and noise reduction.

In many applications, it's tempting to select the highest possible gain to maximize the signal. However, increasing the gain can also amplify unwanted noise, potentially degrading the signal-to-noise ratio (SNR). Engineers should balance the gain setting to achieve sufficient signal amplitude without introducing excessive noise.

For example, in medical instrumentation, it is often best to choose a gain setting that ensures the signal is strong enough for analysis, while ensuring that the amplified noise does not compromise diagnostic accuracy. The optimal gain setting will depend on the source signal level, the noise characteristics of the environment, and the required resolution of the system.

Noise Reduction Strategies: Shielding, Filtering, and Grounding

While the AD620 is designed to minimize internal noise, external noise sources—such as electromagnetic interference (EMI) or power supply fluctuations—can still compromise the performance of the system. To mitigate these effects, several strategies can be employed:

Shielding: To prevent external EMI from coupling into the amplifier circuit, shielding is often used. Shielding can be as simple as placing the amplifier circuit inside a metal enclosure that is grounded to prevent unwanted signals from affecting the system.

Filtering: Low-pass filters are commonly added to the input or output of the AD620 to remove high-frequency noise. A well-designed filter will allow the desired signal to pass while attenuating noise outside the frequency range of interest.

Proper Grounding: Grounding is critical to avoid ground loops and to ensure the accurate reference of signals. A star grounding configuration is often recommended, where all ground connections converge at a single point, minimizing the risk of unwanted noise from circulating currents.

Twisted Pair and Differential Inputs: Using twisted pair cables and differential signal lines helps to cancel out common-mode noise. The AD620 is inherently a differential amplifier, and using differential inputs can significantly improve noise rejection.

Practical Application in Medical Instruments

In the field of medical instrumentation, the AD620 is used in devices like ECG, EEG, and EMG systems. These instruments require the amplification of low-level bioelectric signals, which are often accompanied by noise due to power-line interference, muscle movement, or other sources.

For instance, when designing an ECG system, the AD620 is typically used to amplify the small electrical signals generated by the heart. Since the heart's electrical activity is typically in the range of millivolts, a highly sensitive, low-noise amplifier like the AD620 is essential for accurate measurement. Additionally, since medical devices often require long battery life, the low power consumption of the AD620 makes it a perfect choice for portable, wearable ECG devices.

Industrial Automation: Enhancing Process Control Systems

In industrial settings, the AD620 is commonly used in sensors for process control, monitoring systems, and automation equipment. For example, in a temperature monitoring system using thermocouples, the small voltage signal generated by the thermocouple must be amplified for further processing by a microcontroller or digital system.

The AD620 is ideal for this application because it can amplify these low-level signals without introducing significant noise. Additionally, its low power consumption and adjustable gain make it adaptable to various sensor types and environments.

Conclusion: The AD620—A Key Component for Low-Noise Signal Acquisition

The AD620 Instrument Amplifier is an essential component for any low-noise signal acquisition system. Its high precision, low noise, and flexible design make it ideal for use in medical, industrial, and environmental monitoring applications. By considering factors such as power supply decoupling, PCB layout, shielding, and gain setting, engineers can maximize the performance of the AD620 in real-world systems.

Whether you're designing an ECG monitor, an industrial sensor, or an environmental monitoring system, the AD620 offers a robust solution for achieving accurate, low-noise measurements. Its versatility, combined with thoughtful design, ensures that it remains a cornerstone in the field of precision signal amplification.
